skull_CTA

Apply a specialized skull-stripping pipeline to a single angiography volume using intensity preprocessing, Gaussian smoothing, and FSL BET for brain extraction.

skull_CTA(
    nii_path: str,
    output_path: str,
    f_value: float = 0.1,
    clip_value: tuple = (0, 200),
    cleanup: bool = False,
    debug: bool = False
) -> None

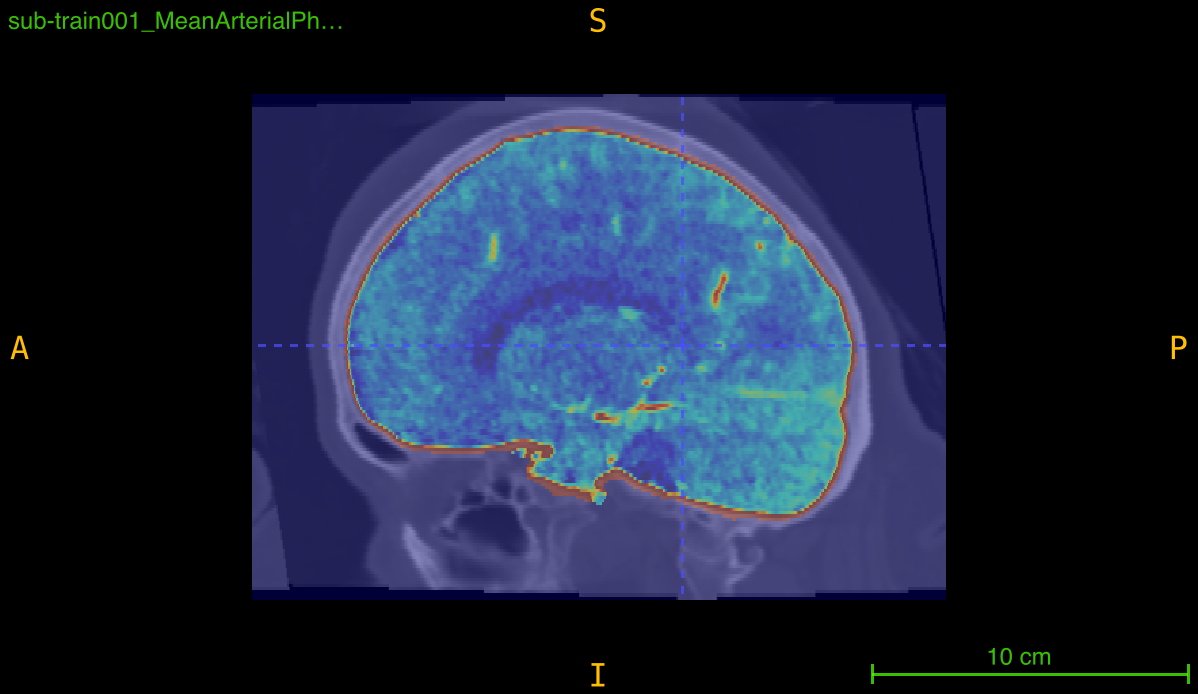

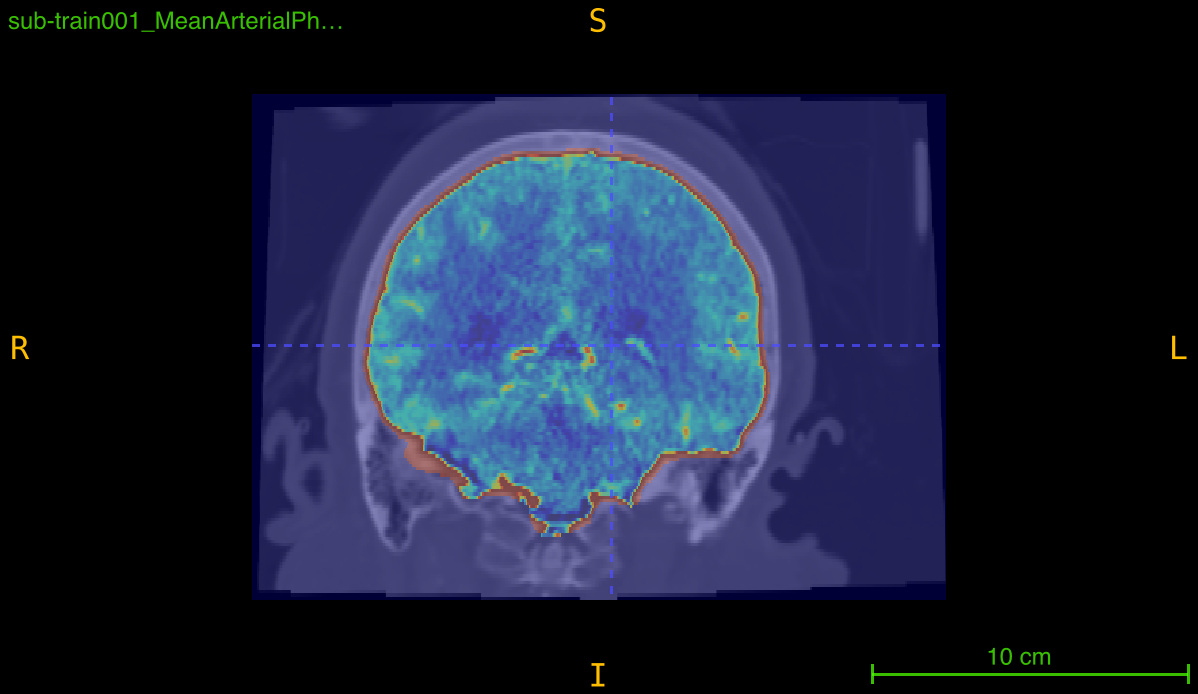

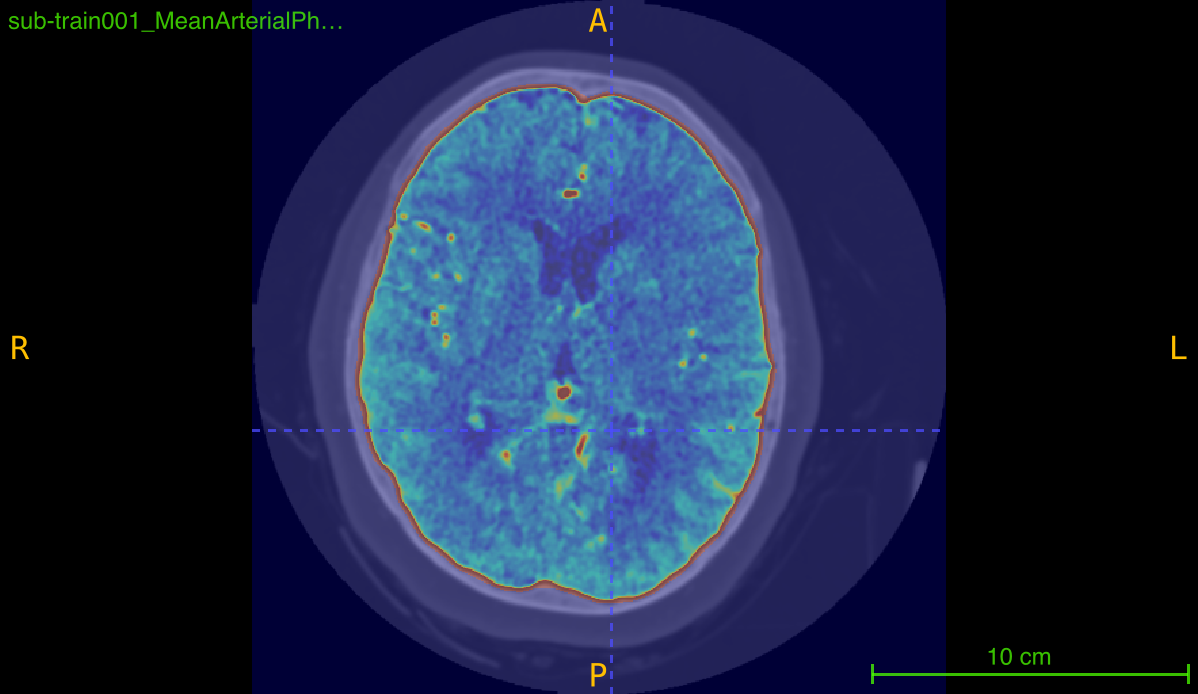

Overview

This function implements a multi-stage skull-stripping pipeline specifically designed for contrast-enhanced angiography imaging. The pipeline combines intensity preprocessing with FSL’s Brain Extraction Tool (BET) to isolate brain tissue and vasculature from skull and non-brain structures.

Processing pipeline:

1. Initial thresholding: Clip intensities to [0, 100] range
2. Gaussian smoothing: Reduce noise with sigma=1
3. Secondary thresholding: Re-clip to [0, 100] after smoothing
4. BET skull-stripping: Remove skull using FSL BET
5. Final clipping: Normalize to desired intensity range

This is essential for:

• Isolating brain vasculature in angiography scans
• Removing skull interference in vessel detection
• Standardizing intensity ranges for analysis
• Preparing data for vessel segmentation
• Reducing false positives from bone in detection tasks

Parameters

Name	Type	Default	Description
nii_path	str	required	Path to the input angiography volume in .nii.gz format.
output_path	str	required	Directory where all outputs will be saved. Created automatically if it doesn’t exist.
f_value	float	0.1	Fractional intensity threshold for BET (0-1). Lower values = more aggressive stripping.
clip_value	tuple	(0, 200)	Intensity range (min, max) for final clipping after skull removal.
cleanup	bool	False	If True, deletes intermediate files. Mask and final clipped volume always retained.
debug	bool	False	If True, prints detailed information about output file locations.

Returns

None – The function saves processed volumes and mask to disk.

Output Files

The function generates multiple files during processing:

Intermediate Files (removed if cleanup=True)

File	Description
<PREFIX>_th.nii.gz	After initial thresholding [0-100]
<PREFIX>_th_sm.nii.gz	After Gaussian smoothing (sigma=1)
<PREFIX>_th_sm_th.nii.gz	After secondary thresholding [0-100]
<PREFIX>_skulled.nii.gz	BET output before final clipping

Final Output Files (always retained)

File	Description
<PREFIX>_skulled_mask.nii.gz	Binary brain mask from BET
<PREFIX>_skulled_clipped.nii.gz	Final skull-stripped and intensity-clipped volume

Example: Input scan_042.nii.gz produces:

• scan_042_skulled_mask.nii.gz
• scan_042_skulled_clipped.nii.gz

Processing Pipeline Details

Step 1: Initial Thresholding

fslmaths input.nii.gz -thr 0 -uthr 100 output_th.nii.gz

Clips intensity values to [0, 100] range to remove extreme values and background.

Step 2: Gaussian Smoothing

fslmaths input_th.nii.gz -s 1 output_th_sm.nii.gz

Applies Gaussian blur with sigma=1 to reduce noise while preserving structures.

Step 3: Secondary Thresholding

fslmaths input_th_sm.nii.gz -thr 0 -uthr 100 output_th_sm_th.nii.gz

Re-applies [0, 100] clipping after smoothing to ensure intensity range.

Step 4: BET Skull-Stripping

bet input_th_sm_th.nii.gz output_skulled.nii.gz -R -f 0.1 -g 0 -m

Parameters:

• -R: Robust brain center estimation
• -f 0.1: Fractional intensity threshold (default)
• -g 0: No vertical gradient in intensity
• -m: Generate binary mask

Step 5: Final Intensity Clipping

clipped = np.clip(skulled_data, min, max)

Normalizes intensity range to specified bounds (default [0, 200]).

BET f_value Parameter

The f_value parameter controls skull removal aggressiveness:

f_value	Effect	When to Use
0.05	Very aggressive, removes more	Thick skull, heavy calcification
0.1	Aggressive (default)	Standard angiography scans
0.2	Moderate	Thin skull, pediatric cases
0.3-0.5	Conservative, preserves more	Ensure all brain tissue retained

Guidelines:

• Lower (0.05-0.15): More skull removed, risk of brain removal
• Higher (0.2-0.5): Less aggressive, may leave some skull
• Start with 0.1 and adjust based on visual inspection

Intensity Clipping

The clip_value tuple defines the final intensity normalization:

Range	Effect	Use Case
(0, 100)	Conservative, soft tissue focus	Basic tissue analysis
(0, 200)	Standard angiography range (default)	Most vessel analysis tasks
(0, 300)	Include high-intensity contrast	Bright vessel enhancement
(0, 500)	Very inclusive, may include artifacts	Preserve all contrast regions

FSL Requirements

Critical: This function requires FSL (FMRIB Software Library) installation:

Installation

1. Download from https://fsl.fmrib.ox.ac.uk/
2. Follow platform-specific installation instructions
3. Configure environment variables (typically in .bashrc or .bash_profile)

Verification

# Check FSL installation
which fslmaths  # Should return path to executable
which bet       # Should return path to executable

# Test BET
bet  # Should display help information

Environment Setup

FSL requires proper environment configuration:

# Typical FSL setup (add to .bashrc)
FSLDIR=/usr/local/fsl
. ${FSLDIR}/etc/fslconf/fsl.sh
PATH=${FSLDIR}/bin:${PATH}
export FSLDIR PATH

Execution Requirements

• Run from terminal: Execute Python scripts from command line, not IDE
• Environment variables: FSL paths must be in shell environment
• Command: python3 script.py (not from IDE’s run button)

Exceptions

Exception	Condition
FileNotFoundError	The input file does not exist
ValueError	File is not in .nii.gz format
ValueError	Input data is not 3D
RuntimeError	FSL command execution failed

Usage Notes

• Input Format: Only .nii.gz files are accepted
• 3D Volumes Required: Input must be a 3D NIfTI image
• Pre-centered Volumes: Input should be centered on brain region
• No FOV Cropping: Original dimensions are preserved
• FSL Dependency: FSL must be installed and properly configured
• Output Directory: Automatically created if it doesn’t exist
• Intermediate Files: Can be removed with cleanup=True to save space

Examples

Basic Usage

Process a single angiography volume:

from nidataset.preprocessing import skull_CTA

skull_CTA(
    nii_path="angiography/patient_001.nii.gz",
    output_path="processed/patient_001/",
    f_value=0.1,
    clip_value=(0, 200)
)
# Output: processed/patient_001/patient_001_skulled_clipped.nii.gz
#         processed/patient_001/patient_001_skulled_mask.nii.gz

With Cleanup

Remove intermediate files to save disk space:

skull_CTA(
    nii_path="data/scan.nii.gz",
    output_path="data/processed/",
    f_value=0.1,
    clip_value=(0, 200),
    cleanup=True,  # Remove intermediate files
    debug=True
)
# Prints: Skull-stripped image saved at: 'data/processed/scan_skulled_clipped.nii.gz'
#         Skull mask saved at: 'data/processed/scan_skulled_mask.nii.gz'

Aggressive Skull Removal

Use lower f_value for thick skull:

skull_CTA(
    nii_path="thick_skull/scan.nii.gz",
    output_path="aggressive_strip/",
    f_value=0.05,  # More aggressive
    clip_value=(0, 200),
    cleanup=True,
    debug=True
)

Conservative Stripping

Use higher f_value to preserve brain tissue:

skull_CTA(
    nii_path="pediatric/child_scan.nii.gz",
    output_path="conservative_strip/",
    f_value=0.3,  # Less aggressive
    clip_value=(0, 200),
    cleanup=True,
    debug=True
)

Custom Intensity Range

Adjust clipping for high-contrast scans:

skull_CTA(
    nii_path="high_contrast.nii.gz",
    output_path="processed/",
    f_value=0.1,
    clip_value=(0, 300),  # Higher upper bound
    cleanup=True,
    debug=True
)

Quality Control Inspection

Keep intermediates for verification:

skull_CTA(
    nii_path="qa/test_scan.nii.gz",
    output_path="qa/processing_steps/",
    f_value=0.1,
    clip_value=(0, 200),
    cleanup=False,  # Keep all intermediate files
    debug=True
)

# Now you can inspect:
# - test_scan_th.nii.gz (after initial threshold)
# - test_scan_th_sm.nii.gz (after smoothing)
# - test_scan_th_sm_th.nii.gz (after second threshold)
# - test_scan_skulled.nii.gz (BET output)
# - test_scan_skulled_clipped.nii.gz (final result)

Verifying FSL Installation

Check FSL before processing:

import subprocess

def check_fsl():
    """Verify FSL is properly installed."""
    try:
        # Check fslmaths
        subprocess.run(['fslmaths'], capture_output=True, check=False)
        print("✓ fslmaths found")

        # Check bet
        subprocess.run(['bet'], capture_output=True, check=False)
        print("✓ bet found")

        return True
    except FileNotFoundError as e:
        print(f"✗ FSL not found: {e}")
        print("Please install FSL and configure environment variables")
        return False

# Verify before processing
if check_fsl():
    from nidataset.preprocessing import skull_CTA

    skull_CTA(
        nii_path="scan.nii.gz",
        output_path="processed/",
        f_value=0.1,
        clip_value=(0, 200),
        cleanup=True,
        debug=True
    )

Testing Different f_values

Find optimal skull-stripping threshold:

from nidataset.preprocessing import skull_CTA
import nibabel as nib
import numpy as np

test_f_values = [0.05, 0.1, 0.15, 0.2, 0.3]
test_scan = "test_data/sample.nii.gz"

results = []

for f_val in test_f_values:
    output_dir = f"f_value_test/f_{f_val}/"

    skull_CTA(
        nii_path=test_scan,
        output_path=output_dir,
        f_value=f_val,
        clip_value=(0, 200),
        cleanup=True,
        debug=True
    )

    # Analyze brain coverage
    mask = nib.load(f"{output_dir}/sample_skulled_mask.nii.gz")
    mask_data = mask.get_fdata()

    coverage = np.sum(mask_data > 0) / np.prod(mask_data.shape) * 100

    results.append({
        'f_value': f_val,
        'brain_coverage': coverage
    })

    print(f"f_value={f_val}: coverage={coverage:.1f}%")

print("\nCompare outputs visually to select optimal f_value")

Assessing Skull Removal Quality

Evaluate processing results:

import nibabel as nib
import numpy as np
from nidataset.preprocessing import skull_CTA

# Process
skull_CTA(
    nii_path="qa/original.nii.gz",
    output_path="qa/processed/",
    f_value=0.1,
    clip_value=(0, 200),
    cleanup=False,  # Keep intermediates for analysis
    debug=True
)

# Load results
original = nib.load("qa/original.nii.gz")
mask = nib.load("qa/processed/original_skulled_mask.nii.gz")
stripped = nib.load("qa/processed/original_skulled_clipped.nii.gz")

orig_data = original.get_fdata()
mask_data = mask.get_fdata()
stripped_data = stripped.get_fdata()

print("\nQuality Assessment:")

# 1. Brain coverage
brain_voxels = np.sum(mask_data > 0)
total_voxels = np.prod(mask_data.shape)
coverage = (brain_voxels / total_voxels) * 100

print(f"  Brain coverage: {coverage:.1f}%")
print(f"  Expected range: 20-40% for head scans")

if coverage < 15:
    print(f"  ⚠️ Warning: Low coverage, try higher f_value")
elif coverage > 50:
    print(f"  ⚠️ Warning: High coverage, try lower f_value")
else:
    print(f"  ✓ Coverage looks reasonable")

# 2. Intensity ranges
print(f"\n  Original intensity: [{orig_data.min():.1f}, {orig_data.max():.1f}]")
print(f"  Stripped intensity: [{stripped_data.min():.1f}, {stripped_data.max():.1f}]")
print(f"  Target clipping: [0, 200]")

# 3. Check masking
brain_region = stripped_data[mask_data > 0]
print(f"\n  Brain region mean: {brain_region.mean():.1f}")
print(f"  Brain region std: {brain_region.std():.1f}")

Creating Visualization Overlay

Generate overlay for visual inspection:

import nibabel as nib
import numpy as np
from nidataset.preprocessing import skull_CTA

# Process
skull_CTA(
    nii_path="visualization/scan.nii.gz",
    output_path="visualization/processed/",
    f_value=0.1,
    clip_value=(0, 200),
    cleanup=False,
    debug=True
)

# Load original and mask
original = nib.load("visualization/scan.nii.gz")
mask = nib.load("visualization/processed/scan_skulled_mask.nii.gz")

orig_data = original.get_fdata()
mask_data = mask.get_fdata()

# Create edge overlay
from scipy import ndimage
edges = ndimage.sobel(mask_data)

overlay = orig_data.copy()
overlay[edges > 0] = orig_data.max()  # Highlight mask boundary

# Save overlay
overlay_img = nib.Nifti1Image(overlay, original.affine)
nib.save(overlay_img, "visualization/mask_overlay.nii.gz")
print("Mask overlay created for quality control")

Error Handling

Robust processing with error management:

from nidataset.preprocessing import skull_CTA

def process_with_error_handling(input_path, output_path):
    """Process scan with comprehensive error handling."""

    try:
        skull_CTA(
            nii_path=input_path,
            output_path=output_path,
            f_value=0.1,
            clip_value=(0, 200),
            cleanup=True,
            debug=True
        )
        print(f"✓ Successfully processed: {input_path}")
        return True

    except FileNotFoundError as e:
        print(f"✗ File not found: {e}")
        return False

    except RuntimeError as e:
        print(f"✗ FSL execution failed: {e}")
        print("Check FSL installation and environment variables")
        return False

    except Exception as e:
        print(f"✗ Unexpected error: {e}")
        return False

# Use in processing
process_with_error_handling(
    "data/scan.nii.gz",
    "data/processed/"
)

Integration with Vessel Analysis

Complete preprocessing pipeline:

from nidataset.preprocessing import skull_CTA, mip

# Step 1: Skull stripping
print("Step 1: Removing skull...")
skull_CTA(
    nii_path="pipeline/original.nii.gz",
    output_path="pipeline/skull_stripped/",
    f_value=0.1,
    clip_value=(0, 200),
    cleanup=True,
    debug=True
)

# Step 2: Enhance vessels with MIP
print("\nStep 2: Enhancing vessels...")
mip(
    nii_path="pipeline/skull_stripped/original_skulled_clipped.nii.gz",
    output_path="pipeline/vessel_enhanced/",
    window_size=15,
    view="axial",
    debug=True
)

print("\nPipeline complete: Ready for vessel segmentation")

Batch Processing Helper

Process multiple scans:

from nidataset.preprocessing import skull_CTA
import os

def batch_skull_strip(input_folder, output_base, f_value=0.1):
    """Process all scans in a folder."""

    success_count = 0
    fail_count = 0

    for filename in os.listdir(input_folder):
        if filename.endswith('.nii.gz'):
            input_path = os.path.join(input_folder, filename)
            scan_name = filename.replace('.nii.gz', '')
            output_path = os.path.join(output_base, scan_name)

            print(f"\nProcessing: {scan_name}")

            try:
                skull_CTA(
                    nii_path=input_path,
                    output_path=output_path,
                    f_value=f_value,
                    clip_value=(0, 200),
                    cleanup=True,
                    debug=False
                )
                success_count += 1
                print(f"✓ Success")

            except Exception as e:
                fail_count += 1
                print(f"✗ Failed: {e}")

    print(f"\n{'='*50}")
    print(f"Batch complete: {success_count} success, {fail_count} failed")

# Use
batch_skull_strip("raw_scans/", "processed_scans/", f_value=0.1)

Typical Workflow

from nidataset.preprocessing import skull_CTA
import subprocess
import nibabel as nib
import numpy as np

# 1. Verify FSL installation
try:
    subprocess.run(['bet', '--version'], capture_output=True, check=True)
    print("✓ FSL is properly configured")
except:
    print("✗ Error: FSL not found")
    print("Install FSL from https://fsl.fmrib.ox.ac.uk/")
    exit(1)

# 2. Process angiography scan
skull_CTA(
    nii_path="data/angiography.nii.gz",
    output_path="data/skull_stripped/",
    f_value=0.1,  # Adjust based on scan
    clip_value=(0, 200),
    cleanup=True,
    debug=True
)

# 3. Verify results
mask = nib.load("data/skull_stripped/angiography_skulled_mask.nii.gz")
stripped = nib.load("data/skull_stripped/angiography_skulled_clipped.nii.gz")

mask_data = mask.get_fdata()
coverage = np.sum(mask_data > 0) / np.prod(mask_data.shape) * 100

print(f"\nQuality Check:")
print(f"  Brain coverage: {coverage:.1f}%")
print(f"  Output shape: {stripped.shape}")

# 4. Use skull-stripped volume for:
# - Vessel segmentation
# - Aneurysm detection
# - Vascular analysis
# - Registration
