register_CTA

Register a single medical imaging volume to a reference template using mutual information-based rigid registration with advanced preprocessing.

register_CTA(
    nii_path: str,
    mask_path: str,
    template_path: str,
    template_mask_path: str,
    output_path: str,
    cleanup: bool = False,
    debug: bool = False,
    number_histogram_bins: int = 128,
    learning_rate: float = 0.0001,
    number_iterations: int = 2000,
    initialization_strategy: int = sitk.CenteredTransformInitializerFilter.MOMENTS,
    sigma_first: float = 2.0,
    sigma_second: float = 3.0,
    metric_sampling_percentage: float = 0.5,
    initial_transform = None
) -> None

Overview

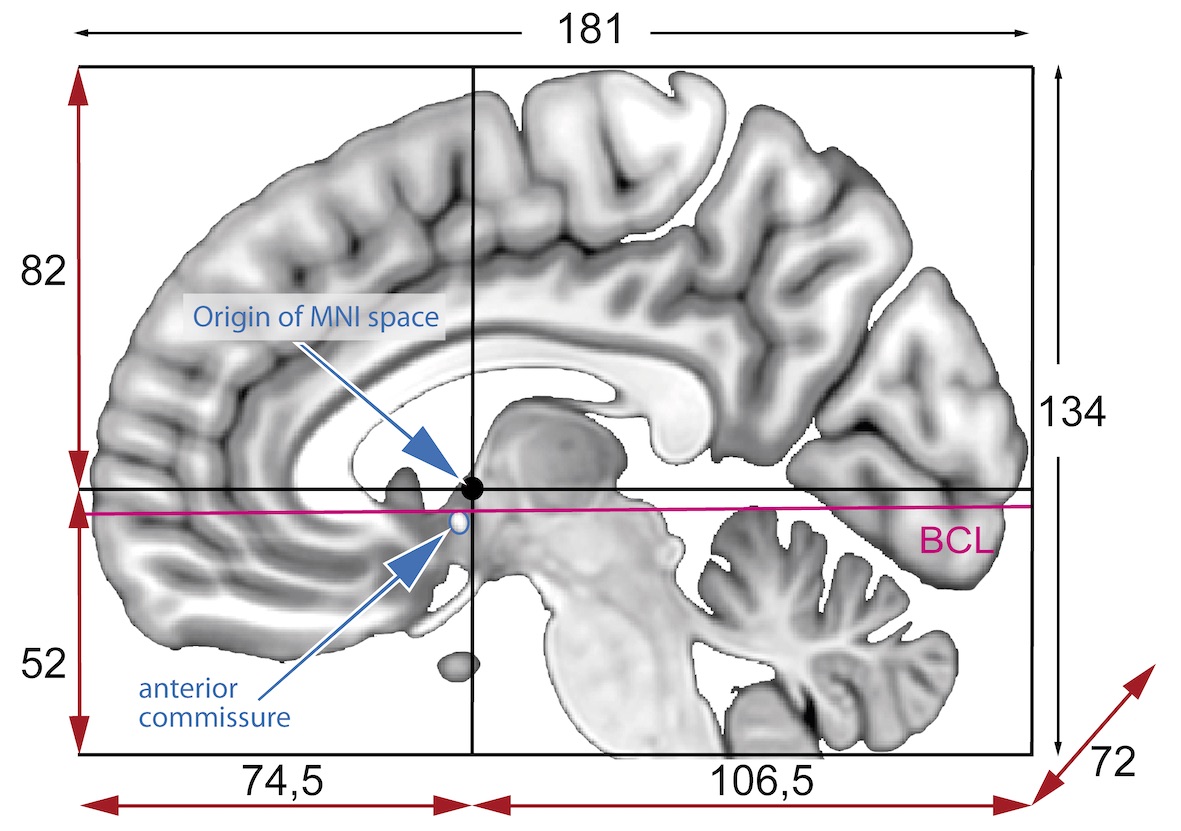

This function aligns a medical imaging volume to a reference template through an optimized registration pipeline that combines preprocessing, masking, and mutual information-based optimization. The process ensures robust alignment even with intensity variations and noise.







https://dartbrains.org/content/Preprocessing.html

Registration pipeline:

  1. Preprocessing: Sequential Gaussian filtering with intensity clipping
  2. Initialization: Moment-based or geometry-based alignment for initial positioning
  3. Optimization: Gradient descent with mutual information metric
  4. Transform saving: Parameters stored for reapplication or analysis

This is essential for:

  • Standardizing spatial orientation across subjects
  • Enabling voxel-wise comparisons
  • Creating normalized datasets for analysis
  • Applying consistent spatial coordinates
  • Building population-based atlases

Parameters

Name Type Default Description
nii_path str required Path to the input volume in .nii.gz format.
mask_path str required Path to the brain mask for the input volume.
template_path str required Path to the reference template volume.
template_mask_path str required Path to the template’s brain mask.
output_path str required Directory where registered volume and intermediate files will be saved.
cleanup bool False If True, deletes intermediate Gaussian-filtered file after registration.
debug bool False If True, prints detailed information about saved file paths.
number_histogram_bins int 128 Number of histogram bins for Mattes Mutual Information metric. Common values: 10, 50, 64, 128.
learning_rate float 0.0001 Learning rate for Gradient Descent optimizer. Common values: 0.0001-1.0.
number_iterations int 2000 Maximum number of optimization iterations. Common values: 500-5000.
initialization_strategy int MOMENTS Strategy for initializing transformation: MOMENTS (center of mass) or GEOMETRY (center/orientation).
sigma_first float 2.0 Standard deviation for the first Gaussian smoothing filter.
sigma_second float 3.0 Standard deviation for the second Gaussian smoothing filter.
metric_sampling_percentage float 0.5 Percentage of voxels to sample for metric evaluation (0.0-1.0). Default: 0.5 (50%).
initial_transform None None Initial transformation object. If None, defaults to sitk.Euler3DTransform().

Returns

None — The function saves registered volume and transformation to disk.

Output Files

The function generates three files:

File Description Kept After Cleanup

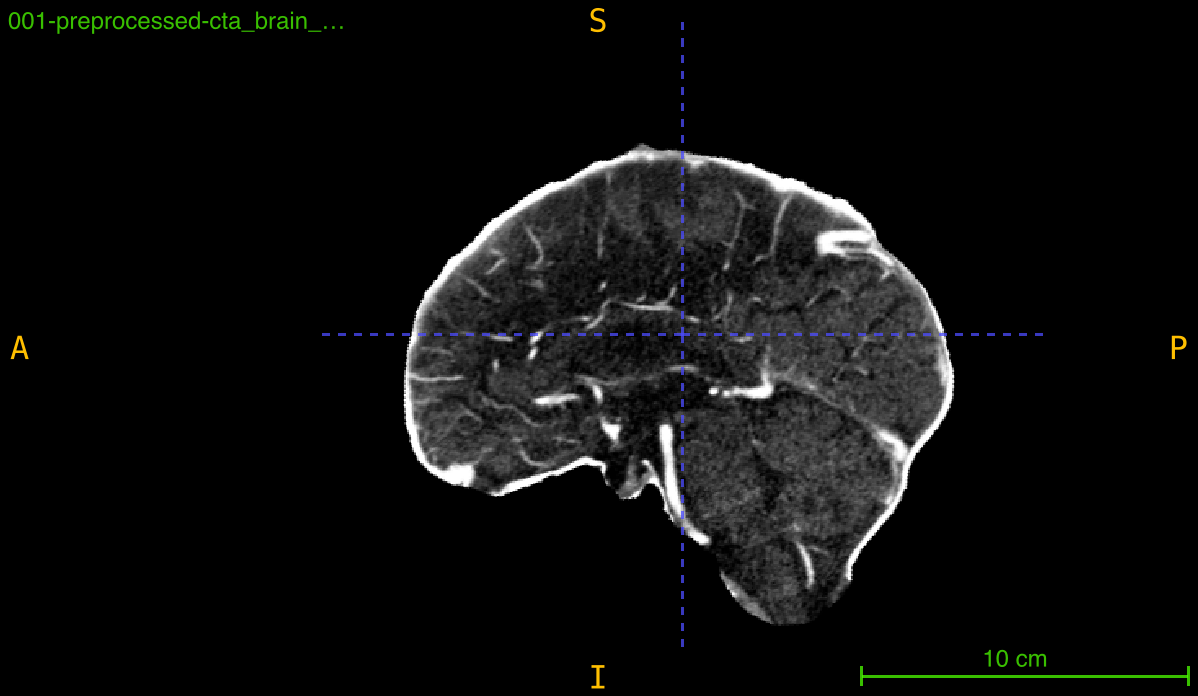

<PREFIX>_registered.nii.gz Volume aligned to template space Yes
<PREFIX>_gaussian_filtered.nii.gz Preprocessed volume used for registration No (if cleanup=True)
<PREFIX>_transformation.tfm Transformation parameters Yes

Example: Input scan_042.nii.gz produces:

  • scan_042_registered.nii.gz
  • scan_042_gaussian_filtered.nii.gz (temporary)
  • scan_042_transformation.tfm

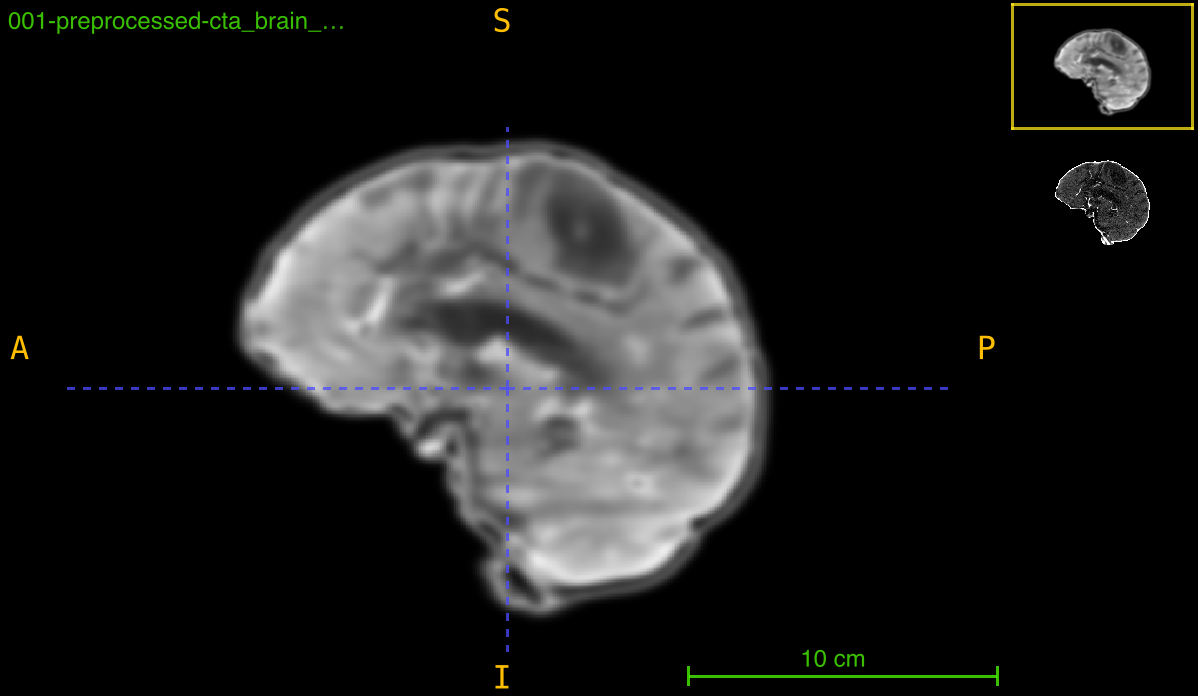

Preprocessing Pipeline

The volume undergoes multi-stage preprocessing before registration:

Step 1: Negative Value Removal

image[image < 0] = 0

Eliminates artifacts from reconstruction or air regions.

Step 2: Initial Gaussian Smoothing

image = gaussian_filter(image, sigma=sigma_first)  # default: 2.0

Reduces noise while preserving structural information.

Step 3: High Intensity Clipping

image[image > 95] = 0

Removes extreme intensities (bone, metal artifacts, or contrast pooling).

Step 4: Secondary Gaussian Smoothing

image = gaussian_filter(image, sigma=sigma_second)  # default: 3.0

Further smooths for robust feature matching.

Step 5: Final Intensity Clipping

image = Clamp(image, lowerBound=0, upperBound=100)

Normalizes intensity range to [0, 100] for consistent metric calculation.

Registration Method Details

Initialization

Method: Centered Transform Initializer

  • Strategy Options:
    • MOMENTS (default): Aligns centers of mass between volumes using mask-based moment calculation
    • GEOMETRY: Aligns based on image geometry (center and orientation)
  • Provides robust starting point for optimization

Metric

Type: Mattes Mutual Information

  • Histogram bins: Configurable (default: 128) for discrete intensity approximation
  • Sampling strategy: Random sampling at configurable percentage (default: 50% of voxels)
  • Masking: Constrained to brain regions only (both fixed and moving masks)
  • Advantage: Robust to intensity variations and scanner differences

Optimization

Algorithm: Gradient Descent

  • Learning rate: Configurable (default: 0.0001), estimated once at start
  • Iterations: Configurable maximum (default: 2000)
  • Scaling: Physical shift-based for balanced optimization
  • Convergence: Automatic when improvement plateaus

Transform Type

Model: Euler3D (Rigid transformation) by default, customizable

  • 6 degrees of freedom: 3 rotations + 3 translations
  • Preserves shape and size
  • Suitable for inter-subject brain alignment
  • Can be replaced with other transform types via initial_transform parameter

Interpolation

Method: Linear interpolation

  • Balances speed and quality
  • Sufficient for most medical imaging applications

Exceptions

Exception Condition
FileNotFoundError Any required input file does not exist
ValueError Input file is not in .nii.gz format

Usage Notes

  • Input Format: Only .nii.gz files are accepted
  • 3D Volumes Required: All inputs must be 3D NIfTI images
  • Mask Requirement: Both volume and template need corresponding masks
  • Output Directories: Automatically created if they don’t exist
  • Transform Format: SimpleITK .tfm format (reusable)
  • Original Volume: Final registration uses original (not filtered) volume
  • Parameter Tuning: Registration quality can be improved by adjusting histogram bins, learning rate, iterations, and sampling percentage

Examples

Basic Usage

Register a single volume to a template:

from nidataset.preprocessing import register_CTA

register_CTA(
    nii_path="scans/patient_001.nii.gz",
    mask_path="masks/patient_001_mask.nii.gz",
    template_path="atlas/standard_template.nii.gz",
    template_mask_path="atlas/standard_mask.nii.gz",
    output_path="registered/",
    cleanup=False,
    debug=True
)
# Prints:
# Registered image saved at: 'registered/patient_001_registered.nii.gz'
# Transformation file saved at: 'registered/patient_001_transformation.tfm'

Custom Registration Parameters

Fine-tune registration for better quality:

import SimpleITK as sitk
from nidataset.preprocessing import register_CTA

register_CTA(
    nii_path="scans/patient_001.nii.gz",
    mask_path="masks/patient_001_mask.nii.gz",
    template_path="atlas/standard_template.nii.gz",
    template_mask_path="atlas/standard_mask.nii.gz",
    output_path="registered/",
    number_histogram_bins=64,
    learning_rate=0.01,
    number_iterations=1000,
    initialization_strategy=sitk.CenteredTransformInitializerFilter.GEOMETRY,
    sigma_first=1.5,
    sigma_second=2.5,
    metric_sampling_percentage=0.7,
    debug=True
)

Using Custom Initial Transform

Start with an affine transform instead of rigid:

import SimpleITK as sitk
from nidataset.preprocessing import register_CTA

# Create a custom initial transform
affine_transform = sitk.AffineTransform(3)

register_CTA(
    nii_path="scans/patient_001.nii.gz",
    mask_path="masks/patient_001_mask.nii.gz",
    template_path="atlas/standard_template.nii.gz",
    template_mask_path="atlas/standard_mask.nii.gz",
    output_path="registered/",
    initial_transform=affine_transform,
    debug=True
)

With Cleanup

Remove intermediate files to save disk space:

register_CTA(
    nii_path="data/scan.nii.gz",
    mask_path="data/scan_mask.nii.gz",
    template_path="template.nii.gz",
    template_mask_path="template_mask.nii.gz",
    output_path="output/",
    cleanup=True,  # Removes Gaussian-filtered intermediate
    debug=True
)
# Only registered volume and transformation are kept

Quality Control Verification

Register and verify alignment:

import nibabel as nib
import numpy as np
from nidataset.preprocessing import register_CTA

# Perform registration
register_CTA(
    nii_path="qa/test_scan.nii.gz",
    mask_path="qa/test_mask.nii.gz",
    template_path="qa/template.nii.gz",
    template_mask_path="qa/template_mask.nii.gz",
    output_path="qa/output/",
    debug=True
)

# Load results
template = nib.load("qa/template.nii.gz")
registered = nib.load("qa/output/test_scan_registered.nii.gz")

template_data = template.get_fdata()
registered_data = registered.get_fdata()

# Verify alignment
print(f"\nQuality Check:")
print(f"  Template shape: {template_data.shape}")
print(f"  Registered shape: {registered_data.shape}")
print(f"  Shapes match: {template_data.shape == registered_data.shape}")

# Calculate correlation within brain region
mask = nib.load("qa/template_mask.nii.gz").get_fdata()
mask_indices = mask > 0

template_roi = template_data[mask_indices]
registered_roi = registered_data[mask_indices]

correlation = np.corrcoef(template_roi, registered_roi)[0, 1]
print(f"  Brain region correlation: {correlation:.3f}")
print(f"  Good alignment: {correlation > 0.7}")

Inspecting Preprocessing

Examine intermediate preprocessing steps:

from nidataset.preprocessing import register_CTA
import nibabel as nib
import matplotlib.pyplot as plt

# Register without cleanup to inspect intermediate
register_CTA(
    nii_path="inspection/scan.nii.gz",
    mask_path="inspection/scan_mask.nii.gz",
    template_path="template.nii.gz",
    template_mask_path="template_mask.nii.gz",
    output_path="inspection/output/",
    cleanup=False,  # Keep intermediate
    debug=True
)

# Load original and filtered
original = nib.load("inspection/scan.nii.gz").get_fdata()
filtered = nib.load("inspection/output/scan_gaussian_filtered.nii.gz").get_fdata()

# Compare middle slices
mid_slice = original.shape[2] // 2

fig, axes = plt.subplots(1, 2, figsize=(12, 5))
axes[0].imshow(original[:, :, mid_slice], cmap='gray')
axes[0].set_title('Original')
axes[1].imshow(filtered[:, :, mid_slice], cmap='gray')
axes[1].set_title('After Gaussian Preprocessing')
plt.savefig('preprocessing_comparison.png')
print("Comparison saved: preprocessing_comparison.png")

Applying Transformation to Other Data

Reuse transformation for related scans:

import SimpleITK as sitk
from nidataset.preprocessing import register_CTA

# Step 1: Register structural scan
register_CTA(
    nii_path="structural.nii.gz",
    mask_path="structural_mask.nii.gz",
    template_path="template.nii.gz",
    template_mask_path="template_mask.nii.gz",
    output_path="registered/",
    debug=True
)

# Step 2: Apply same transformation to functional scan
transform = sitk.ReadTransform("registered/structural_transformation.tfm")
template = sitk.ReadImage("template.nii.gz")
functional = sitk.ReadImage("functional.nii.gz")

# Apply transformation
registered_functional = sitk.Resample(
    functional,
    template,
    transform,
    sitk.sitkLinear,
    0.0
)

# Save
sitk.WriteImage(registered_functional, "registered/functional_registered.nii.gz")
print("Functional scan registered using structural transformation")

Analyzing Transformation Parameters

Extract and interpret registration parameters:

import SimpleITK as sitk
import numpy as np
from nidataset.preprocessing import register_CTA

# Perform registration
register_CTA(
    nii_path="analysis/scan.nii.gz",
    mask_path="analysis/scan_mask.nii.gz",
    template_path="template.nii.gz",
    template_mask_path="template_mask.nii.gz",
    output_path="analysis/output/",
    debug=True
)

# Load transformation
transform = sitk.ReadTransform("analysis/output/scan_transformation.tfm")
params = transform.GetParameters()

print("\nTransformation Analysis:")
print(f"  Transform type: {transform.GetName()}")
print(f"  Number of parameters: {len(params)}")

# For Euler3D transform (6 parameters: 3 rotations + 3 translations)
if len(params) >= 6:
    rotations = params[0:3]  # Radians
    translations = params[3:6]  # mm

    print(f"\n  Rotations (radians):")
    print(f"    X-axis: {rotations[0]:.4f} ({np.degrees(rotations[0]):.2f}°)")
    print(f"    Y-axis: {rotations[1]:.4f} ({np.degrees(rotations[1]):.2f}°)")
    print(f"    Z-axis: {rotations[2]:.4f} ({np.degrees(rotations[2]):.2f}°)")

    print(f"\n  Translations (mm):")
    print(f"    X: {translations[0]:.2f}")
    print(f"    Y: {translations[1]:.2f}")
    print(f"    Z: {translations[2]:.2f}")

    total_translation = np.sqrt(sum(t**2 for t in translations))
    print(f"\n  Total translation: {total_translation:.2f} mm")

Batch Processing with Error Handling

Process multiple volumes robustly:

from nidataset.preprocessing import register_CTA
import os

scans = ["scan_001.nii.gz", "scan_002.nii.gz", "scan_003.nii.gz"]
template = "atlas/template.nii.gz"
template_mask = "atlas/template_mask.nii.gz"

failed_scans = []

for scan_file in scans:
    scan_id = scan_file.replace('.nii.gz', '')

    try:
        register_CTA(
            nii_path=f"scans/{scan_file}",
            mask_path=f"masks/{scan_file}",
            template_path=template,
            template_mask_path=template_mask,
            output_path="registered/",
            cleanup=True,
            debug=True
        )
        print(f"✓ Successfully registered: {scan_id}")
    except Exception as e:
        print(f"✗ Failed: {scan_id} - {str(e)}")
        failed_scans.append(scan_id)

if failed_scans:
    print(f"\nFailed scans ({len(failed_scans)}):")
    for scan in failed_scans:
        print(f"  - {scan}")

Comparing Registration Quality

Register with different parameters to assess impact:

import nibabel as nib
import numpy as np
from nidataset.preprocessing import register_CTA

# Standard registration
register_CTA(
    nii_path="comparison/scan.nii.gz",
    mask_path="comparison/scan_mask.nii.gz",
    template_path="template.nii.gz",
    template_mask_path="template_mask.nii.gz",
    output_path="comparison/standard/",
    cleanup=False,
    debug=True
)

# High-quality registration
register_CTA(
    nii_path="comparison/scan.nii.gz",
    mask_path="comparison/scan_mask.nii.gz",
    template_path="template.nii.gz",
    template_mask_path="template_mask.nii.gz",
    output_path="comparison/high_quality/",
    number_histogram_bins=256,
    learning_rate=0.001,
    number_iterations=5000,
    metric_sampling_percentage=0.8,
    cleanup=False,
    debug=True
)

# Load and compare results
template_data = nib.load("template.nii.gz").get_fdata()
template_mask = nib.load("template_mask.nii.gz").get_fdata()
registered_standard = nib.load("comparison/standard/scan_registered.nii.gz").get_fdata()
registered_hq = nib.load("comparison/high_quality/scan_registered.nii.gz").get_fdata()

# Calculate metrics within brain
mask_indices = template_mask > 0
template_roi = template_data[mask_indices]
standard_roi = registered_standard[mask_indices]
hq_roi = registered_hq[mask_indices]

# Correlations
corr_standard = np.corrcoef(template_roi, standard_roi)[0, 1]
corr_hq = np.corrcoef(template_roi, hq_roi)[0, 1]

print(f"\nRegistration Quality Comparison:")
print(f"  Standard correlation: {corr_standard:.3f}")
print(f"  High-quality correlation: {corr_hq:.3f}")
print(f"  Improvement: {corr_hq - corr_standard:.3f}")

Integration with Pipeline

Use registration in a complete preprocessing workflow:

from nidataset.preprocessing import register_CTA
from nidataset.volume import generate_brain_mask, crop_and_pad
import os

def preprocess_scan(scan_path, template_path, template_mask_path, output_folder):
    """Complete preprocessing pipeline with registration."""

    scan_id = os.path.basename(scan_path).replace('.nii.gz', '')

    # Step 1: Generate brain mask
    print(f"Step 1: Generating brain mask for {scan_id}...")
    generate_brain_mask(
        nii_path=scan_path,
        output_path=f"{output_folder}/masks/",
        threshold=(50, 300),
        closing_radius=3
    )

    # Step 2: Register to template
    print(f"Step 2: Registering {scan_id}...")
    mask_path = f"{output_folder}/masks/{scan_id}_brain_mask.nii.gz"
    register_CTA(
        nii_path=scan_path,
        mask_path=mask_path,
        template_path=template_path,
        template_mask_path=template_mask_path,
        output_path=f"{output_folder}/registered/",
        cleanup=True,
        debug=True
    )

    # Step 3: Crop and pad registered volume
    print(f"Step 3: Cropping and padding {scan_id}...")
    registered_path = f"{output_folder}/registered/{scan_id}_registered.nii.gz"
    crop_and_pad(
        nii_path=registered_path,
        output_path=f"{output_folder}/final/",
        target_shape=(128, 128, 128)
    )

    print(f"Preprocessing complete for {scan_id}")

# Use in pipeline
preprocess_scan(
    scan_path="raw/patient_001.nii.gz",
    template_path="atlas/template.nii.gz",
    template_mask_path="atlas/template_mask.nii.gz",
    output_folder="preprocessed/"
)

Typical Workflow

from nidataset.preprocessing import register_CTA
import nibabel as nib

# 1. Prepare inputs
scan_file = "data/patient_scan.nii.gz"
scan_mask = "data/patient_mask.nii.gz"
template = "atlas/standard_template.nii.gz"
template_mask = "atlas/standard_mask.nii.gz"

# 2. Perform registration
register_CTA(
    nii_path=scan_file,
    mask_path=scan_mask,
    template_path=template,
    template_mask_path=template_mask,
    output_path="registered/",
    cleanup=True,  # Save disk space
    debug=True
)

# 3. Verify result
registered = nib.load("registered/patient_scan_registered.nii.gz")
template_img = nib.load(template)

print(f"Template shape: {template_img.shape}")
print(f"Registered shape: {registered.shape}")

# 4. Use registered volume for:
# - Voxel-wise analysis
# - Population studies
# - Group comparisons
# - Atlas-based segmentation

Parameter Tuning Guide

Parameter Effect Recommendations
number_histogram_bins Higher values = finer intensity discretization 64-128 for most cases; 256 for high-contrast images
learning_rate Higher values = faster but less stable convergence 0.0001-0.001 for standard; 0.01+ for fast initial alignment
number_iterations More iterations = potential for better alignment 1000-2000 standard; 3000-5000 for difficult cases
metric_sampling_percentage Higher sampling = more accurate but slower 0.3-0.5 for speed; 0.7-1.0 for accuracy
sigma_first / sigma_second Controls smoothing strength Lower for sharp features; higher for noisy images
initialization_strategy MOMENTS vs GEOMETRY MOMENTS for asymmetric anatomy; GEOMETRY for symmetric
This site uses Just the Docs, a documentation theme for Jekyll.
