generate_heatmap_volume

Generate a synthetic heatmap volume by summing all NIfTI files in a folder to visualize spatial overlap and accumulation.

generate_heatmap_volume(
    nii_folder: str,
    output_path: str,
    output_filename: str = "heatmap_volume.nii.gz",
    use_mean: bool = True,
    clip_to_input_range: bool = True,
    normalize: bool = False,
    debug: bool = False
) -> None

Overview

This function creates a heatmap volume by performing voxel-wise averaging (default) or summation across all NIfTI files in a specified folder. The resulting volume represents the spatial probability, overlap, accumulation, or density across all input volumes, making it useful for visualizing patterns, hotspots, or regions of interest across a dataset.

Heatmap generation pipeline:

1. Discovery: Locates all .nii.gz files in input folder
2. Validation: Ensures all volumes have matching shapes
3. Accumulation: Averages or sums voxel values across all volumes
4. Processing: Optionally clips to input range and/or normalizes
5. Output: Saves resulting heatmap with proper metadata

This is essential for:

• Creating probability maps from multiple segmentations
• Visualizing annotation density across datasets
• Generating overlap maps for bounding boxes or masks
• Creating consensus maps from multiple annotators
• Identifying hotspots or regions of high activity
• Building ensemble predictions from multiple models

Parameters

Name	Type	Default	Description
nii_folder	str	required	Path to folder containing input NIfTI files (.nii.gz).
output_path	str	required	Directory where heatmap volume will be saved.
output_filename	str	"heatmap_volume.nii.gz"	Name of output heatmap file.
use_mean	bool	True	If True, computes mean (probability map). If False, sums values (density map).
clip_to_input_range	bool	True	If True, clips output to min/max range of input files.
normalize	bool	False	If True, normalizes output to [0, 1] range after mean/sum.
debug	bool	False	If True, prints detailed information about processing and statistics.

Returns

None — The function saves the heatmap volume to disk.

Output Files

The function generates a single output file:

File	Description	Format
output_filename	Heatmap volume with accumulated values	.nii.gz

Processing Options

Aggregation Method (use_mean)

When True (default):

• Computes voxel-wise mean across all volumes
• Output values represent probability or frequency of occurrence
• Range: same as input files (typically [0, 1] for binary masks)
• Useful for: probability maps, consensus building, ensemble averaging

When False:

• Computes voxel-wise sum across all volumes
• Output values represent total count or accumulation
• Range: can reach N × max_input_value (where N = number of files)
• Useful for: density maps, overlap counting, hotspot detection

Example:

# Binary masks (0 or 1) from 10 files:
# - With mean: output in [0, 1] (e.g., 0.7 = 70% of files have this voxel)
# - With sum: output in [0, 10] (e.g., 7 = this voxel appears in 7 files)

Clipping (clip_to_input_range)

When True (default):

• Tracks minimum and maximum values across all input files
• Clips accumulated values to [global_min, global_max] range
• Prevents values from exceeding original input range
• Useful when input files have specific intensity scales

When False:

• Allows accumulated values to grow without bounds
• Useful for counting overlaps or creating density maps
• Final values can exceed original input range

Example:

# If input files have values in [0, 1]:
# - With clipping: output stays in [0, 1]
# - Without clipping: output can be [0, N] where N = number of files

Normalization (normalize)

When True:

• Scales output to [0, 1] range after mean/sum
• Applied after clipping if both are enabled
• Formula: (value - min) / (max - min)
• Skipped if volume is constant (max == min)

When False (default):

• Preserves mean/sum values as-is
• Useful when absolute values are meaningful

Processing Order:

1. Mean or sum across all volumes
2. Clipping (if enabled)
3. Normalization (if enabled)

Important Notes

Input Requirements

• All input volumes must be 3D NIfTI files (.nii.gz)
• All volumes must have identical shapes
• All volumes should have the same spatial orientation
• At least one .nii.gz file must be present in input folder

Spatial Metadata

• Affine matrix from the first file is used for output
• Header information from first file is preserved
• All files should have compatible spatial metadata

Data Type

• Output is always saved as float32
• Internal accumulation uses float64 for precision
• Input files can be any numeric type

Memory Considerations

• Entire accumulated volume is kept in memory
• Memory usage: volume_shape * 8 bytes (float64 during processing)
• For large datasets, ensure sufficient RAM available

Exceptions

Exception	Condition
FileNotFoundError	Input folder does not exist or contains no .nii.gz files
ValueError	Input volumes have mismatched shapes
ValueError	Input file is not 3D or cannot be loaded

Usage Notes

• Progress Tracking: Uses tqdm progress bar during processing
• Output Directory: Automatically created if it doesn’t exist
• File Order: Processing order depends on filesystem listing
• Error Handling: Stops processing and raises error if any file fails
• Shape Validation: First file sets reference shape for all others

Examples

Basic Usage - Brain Mask Overlap

Create probability map from multiple brain masks:

from nidataset.volume import generate_heatmap_volume

# Generate probability heatmap showing brain mask overlap
generate_heatmap_volume(
    nii_folder="dataset/brain_masks/",
    output_path="output/heatmaps/",
    output_filename="brain_probability_map.nii.gz",
    use_mean=True,  # Probability map
    clip_to_input_range=True,
    normalize=False,
    debug=True
)
# Output shows probability (0-1) of voxel being in brain mask

Bounding Box Density Map

Visualize where bounding boxes are most concentrated:

from nidataset.volume import generate_heatmap_volume

# Generate density map from bounding box volumes (count overlaps)
generate_heatmap_volume(
    nii_folder="output/bounding_boxes/",
    output_path="output/heatmaps/",
    output_filename="bbox_density_map.nii.gz",
    use_mean=False,  # Use sum to count overlaps
    clip_to_input_range=False,  # Allow counting overlaps
    normalize=False,
    debug=True
)
# Output values represent number of overlapping boxes at each voxel

Probability Map from Segmentations

Create consensus segmentation from multiple models:

from nidataset.volume import generate_heatmap_volume

# Generate probability map from multiple model predictions
generate_heatmap_volume(
    nii_folder="predictions/model_outputs/",
    output_path="ensemble/",
    output_filename="lesion_probability_map.nii.gz",
    use_mean=True,  # Average predictions
    clip_to_input_range=True,
    normalize=False,  # Keep probability values
    debug=True
)
# Output represents average probability across all models

Annotation Density Analysis

Analyze where annotators most frequently mark regions:

from nidataset.volume import generate_heatmap_volume

# Create count heatmap from multiple annotator masks
generate_heatmap_volume(
    nii_folder="annotations/expert_masks/",
    output_path="analysis/",
    output_filename="annotation_counts.nii.gz",
    use_mean=False,  # Count annotations
    clip_to_input_range=False,
    normalize=False,
    debug=True
)

# Load and analyze
import nibabel as nib
import numpy as np

heatmap = nib.load("analysis/annotation_counts.nii.gz")
data = heatmap.get_fdata()

n_annotators = 5  # Example: 5 annotators
print(f"Maximum overlap: {np.max(data):.0f} annotators")
print(f"High consensus voxels (>50%): {np.sum(data > n_annotators/2)}")

Batch Processing Multiple Datasets

Generate heatmaps for different anatomical regions:

from nidataset.volume import generate_heatmap_volume
import os

# Define regions to process
regions = [
    ("lesion_masks", "lesion_heatmap.nii.gz"),
    ("vessel_masks", "vessel_heatmap.nii.gz"),
    ("tumor_masks", "tumor_heatmap.nii.gz"),
    ("edema_masks", "edema_heatmap.nii.gz")
]

for folder_name, output_name in regions:
    input_folder = f"dataset/{folder_name}/"

    if os.path.exists(input_folder):
        print(f"\nProcessing {folder_name}...")

        generate_heatmap_volume(
            nii_folder=input_folder,
            output_path="heatmaps/",
            output_filename=output_name,
            clip_to_input_range=True,
            normalize=True,
            debug=True
        )

        print(f"Completed {folder_name}")
    else:
        print(f"Skipping {folder_name} - folder not found")

Compare Mean vs Sum

Understand the difference between aggregation methods:

from nidataset.volume import generate_heatmap_volume
import nibabel as nib
import numpy as np

# Generate using mean (probability)
generate_heatmap_volume(
    nii_folder="dataset/masks/",
    output_path="comparison/",
    output_filename="heatmap_mean.nii.gz",
    use_mean=True,
    clip_to_input_range=True,
    normalize=False,
    debug=True
)

# Generate using sum (counts)
generate_heatmap_volume(
    nii_folder="dataset/masks/",
    output_path="comparison/",
    output_filename="heatmap_sum.nii.gz",
    use_mean=False,
    clip_to_input_range=False,
    normalize=False,
    debug=True
)

# Compare results
mean_data = nib.load("comparison/heatmap_mean.nii.gz").get_fdata()
sum_data = nib.load("comparison/heatmap_sum.nii.gz").get_fdata()

print("\nComparison:")
print(f"Mean - Range: [{np.min(mean_data):.3f}, {np.max(mean_data):.3f}]")
print(f"Sum - Range: [{np.min(sum_data):.0f}, {np.max(sum_data):.0f}]")
print(f"Number of files: {int(np.max(sum_data) / np.max(mean_data))}")

Normalize vs Raw Values

Compare normalized and raw heatmaps:

from nidataset.volume import generate_heatmap_volume
import nibabel as nib
import matplotlib.pyplot as plt

# Generate raw heatmap
generate_heatmap_volume(
    nii_folder="dataset/detections/",
    output_path="comparison/",
    output_filename="raw_heatmap.nii.gz",
    clip_to_input_range=False,
    normalize=False
)

# Generate normalized heatmap
generate_heatmap_volume(
    nii_folder="dataset/detections/",
    output_path="comparison/",
    output_filename="normalized_heatmap.nii.gz",
    clip_to_input_range=False,
    normalize=True
)

# Visualize comparison
raw = nib.load("comparison/raw_heatmap.nii.gz").get_fdata()
normalized = nib.load("comparison/normalized_heatmap.nii.gz").get_fdata()

fig, axes = plt.subplots(1, 2, figsize=(12, 5))

# Raw heatmap
axes[0].imshow(raw[:, :, raw.shape[2]//2], cmap='hot')
axes[0].set_title(f'Raw Counts\nRange: [0, {raw.max():.0f}]')
axes[0].axis('off')

# Normalized heatmap
axes[1].imshow(normalized[:, :, normalized.shape[2]//2], cmap='hot')
axes[1].set_title('Normalized [0, 1]')
axes[1].axis('off')

plt.tight_layout()
plt.savefig('heatmap_comparison.png', dpi=150)

Quality Control and Validation

Verify heatmap generation:

from nidataset.volume import generate_heatmap_volume
import nibabel as nib
import numpy as np
import os

def validate_heatmap_generation(input_folder, output_file):
    """Generate and validate heatmap."""

    # Count input files
    input_files = [f for f in os.listdir(input_folder) if f.endswith('.nii.gz')]
    n_files = len(input_files)

    print(f"Input files: {n_files}")

    # Generate heatmap
    generate_heatmap_volume(
        nii_folder=input_folder,
        output_path=os.path.dirname(output_file),
        output_filename=os.path.basename(output_file),
        clip_to_input_range=False,
        normalize=False,
        debug=True
    )

    # Load and validate
    heatmap = nib.load(output_file)
    data = heatmap.get_fdata()

    # Load first input for comparison
    first_input = nib.load(os.path.join(input_folder, input_files[0]))

    # Validation checks
    checks = {
        'Shape matches input': data.shape == first_input.shape,
        'Affine preserved': np.allclose(heatmap.affine, first_input.affine),
        'Max value reasonable': np.max(data) <= n_files,
        'Min value non-negative': np.min(data) >= 0,
        'Contains non-zero values': np.any(data > 0)
    }

    print("\nValidation Results:")
    for check, passed in checks.items():
        status = "PASS" if passed else "FAIL"
        print(f"  {status}: {check}")

    print(f"\nHeatmap Statistics:")
    print(f"  Shape: {data.shape}")
    print(f"  Range: [{np.min(data):.2f}, {np.max(data):.2f}]")
    print(f"  Mean: {np.mean(data):.2f}")
    print(f"  Non-zero voxels: {np.sum(data > 0)}")

    return all(checks.values())

# Run validation
success = validate_heatmap_generation(
    input_folder="dataset/masks/",
    output_file="validation/heatmap.nii.gz"
)

Multi-Configuration Analysis

Create heatmaps with different settings:

from nidataset.volume import generate_heatmap_volume
import nibabel as nib
import numpy as np

# Generate various versions
configurations = [
    ("mean_probability.nii.gz", True, False, False),
    ("sum_counts.nii.gz", False, False, False),
    ("mean_normalized.nii.gz", True, False, True),
    ("sum_normalized.nii.gz", False, False, True)
]

for filename, use_mean, clip, norm in configurations:
    generate_heatmap_volume(
        nii_folder="dataset/predictions/",
        output_path="analysis/",
        output_filename=filename,
        use_mean=use_mean,
        clip_to_input_range=clip,
        normalize=norm,
        debug=False
    )

    # Load and analyze
    data = nib.load(f"analysis/{filename}").get_fdata()
    method = "Mean" if use_mean else "Sum"
    print(f"\n{filename} ({method}):")
    print(f"  Range: [{np.min(data):.3f}, {np.max(data):.3f}]")
    print(f"  Mean: {np.mean(data):.3f}")

Create Consensus Mask

Generate binary consensus from probability heatmap:

from nidataset.volume import generate_heatmap_volume
import nibabel as nib
import numpy as np

# Generate probability heatmap using mean
generate_heatmap_volume(
    nii_folder="annotations/expert_masks/",
    output_path="consensus/",
    output_filename="probability_map.nii.gz",
    use_mean=True,  # Get probability map
    clip_to_input_range=True,
    normalize=False,
    debug=True
)

# Load heatmap
heatmap = nib.load("consensus/probability_map.nii.gz")
prob_data = heatmap.get_fdata()

# Create consensus masks at different thresholds
thresholds = [0.3, 0.5, 0.7, 0.9]

for threshold in thresholds:
    # Create binary mask
    consensus_mask = (prob_data >= threshold).astype(np.uint8)

    # Save
    consensus_img = nib.Nifti1Image(consensus_mask, heatmap.affine)
    output_file = f"consensus/consensus_threshold_{int(threshold*100)}.nii.gz"
    nib.save(consensus_img, output_file)

    # Report statistics
    voxel_count = np.sum(consensus_mask)
    total_voxels = consensus_mask.size
    percentage = (voxel_count / total_voxels) * 100

    print(f"Threshold {threshold}: {voxel_count} voxels ({percentage:.2f}%)")

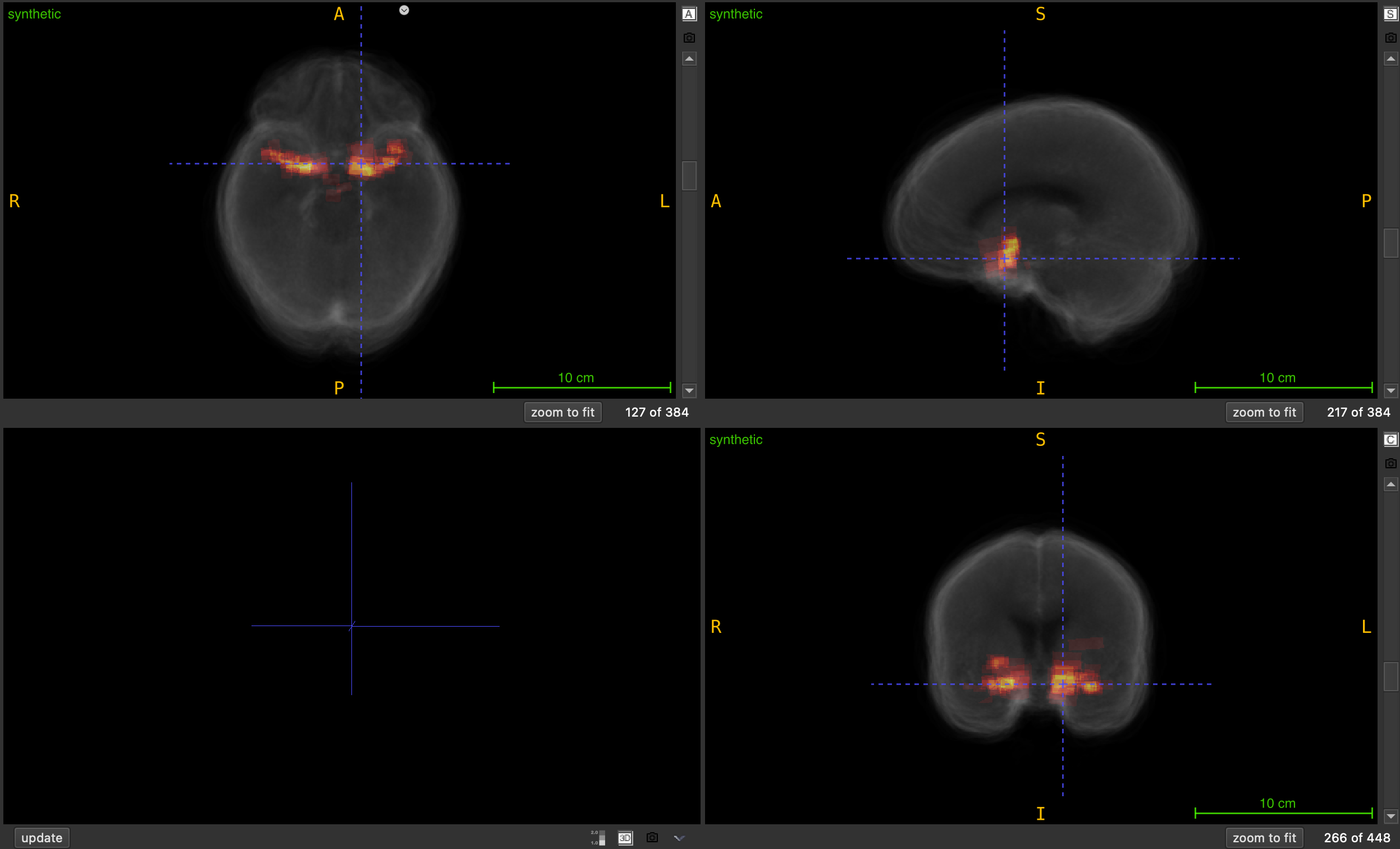

Visualize Heatmap with Overlay

Create visualization with probability heatmap overlaid on anatomical scan:

from nidataset.volume import generate_heatmap_volume
import nibabel as nib
import matplotlib.pyplot as plt
import numpy as np

# Generate probability heatmap
generate_heatmap_volume(
    nii_folder="dataset/lesion_masks/",
    output_path="visualization/",
    output_filename="lesion_probability_map.nii.gz",
    use_mean=True,  # Probability map
    clip_to_input_range=True,
    normalize=False
)

# Load heatmap and anatomical scan
heatmap = nib.load("visualization/lesion_probability_map.nii.gz").get_fdata()
anatomical = nib.load("dataset/template.nii.gz").get_fdata()

# Select middle slice
slice_idx = heatmap.shape[2] // 2

# Create visualization
fig, axes = plt.subplots(1, 3, figsize=(18, 6))

# Anatomical only
axes[0].imshow(anatomical[:, :, slice_idx], cmap='gray')
axes[0].set_title('Anatomical Scan', fontsize=14)
axes[0].axis('off')

# Heatmap only
im1 = axes[1].imshow(heatmap[:, :, slice_idx], cmap='hot')
axes[1].set_title('Lesion Probability Map', fontsize=14)
axes[1].axis('off')
plt.colorbar(im1, ax=axes[1], fraction=0.046)

# Overlay
axes[2].imshow(anatomical[:, :, slice_idx], cmap='gray')
im2 = axes[2].imshow(heatmap[:, :, slice_idx], cmap='hot', alpha=0.5)
axes[2].set_title('Overlay', fontsize=14)
axes[2].axis('off')
plt.colorbar(im2, ax=axes[2], fraction=0.046)

plt.tight_layout()
plt.savefig('heatmap_visualization.png', dpi=150, bbox_inches='tight')
print("Visualization saved: heatmap_visualization.png")

Extract Hotspot Regions

Identify and extract high-density regions from count heatmap:

from nidataset.volume import generate_heatmap_volume
import nibabel as nib
import numpy as np
from scipy import ndimage

# Generate count heatmap
generate_heatmap_volume(
    nii_folder="dataset/annotations/",
    output_path="analysis/",
    output_filename="annotation_density.nii.gz",
    use_mean=False,  # Use sum to count
    clip_to_input_range=False,
    normalize=False,
    debug=True
)

# Load heatmap
heatmap = nib.load("analysis/annotation_density.nii.gz")
data = heatmap.get_fdata()

# Find hotspots (top 10% of values)
threshold = np.percentile(data[data > 0], 90)
hotspots = data >= threshold

# Label connected components
labeled, num_features = ndimage.label(hotspots)

print(f"\nHotspot Analysis:")
print(f"  Threshold (90th percentile): {threshold:.3f}")
print(f"  Number of hotspot regions: {num_features}")

# Analyze each hotspot
for region_id in range(1, num_features + 1):
    region_mask = labeled == region_id
    region_size = np.sum(region_mask)
    region_max = np.max(data[region_mask])
    region_mean = np.mean(data[region_mask])

    # Find center of mass
    coords = np.argwhere(region_mask)
    center = coords.mean(axis=0).astype(int)

    print(f"\nHotspot {region_id}:")
    print(f"  Size: {region_size} voxels")
    print(f"  Center: {center}")
    print(f"  Max density: {region_max:.3f}")
    print(f"  Mean density: {region_mean:.3f}")

# Save hotspot mask
hotspot_img = nib.Nifti1Image(hotspots.astype(np.uint8), heatmap.affine)
nib.save(hotspot_img, "analysis/hotspots_mask.nii.gz")

Time Series Heatmap Analysis

Generate heatmaps for different time points or subgroups:

from nidataset.volume import generate_heatmap_volume
import os

# Define timepoints or groups
timepoints = {
    'baseline': 'dataset/timepoint_0/',
    'week_4': 'dataset/timepoint_1/',
    'week_8': 'dataset/timepoint_2/',
    'week_12': 'dataset/timepoint_3/'
}

# Generate heatmap for each timepoint
for timepoint, folder in timepoints.items():
    if os.path.exists(folder):
        print(f"\nProcessing {timepoint}...")

        generate_heatmap_volume(
            nii_folder=folder,
            output_path="temporal_analysis/",
            output_filename=f"heatmap_{timepoint}.nii.gz",
            clip_to_input_range=True,
            normalize=True,
            debug=True
        )
    else:
        print(f"Skipping {timepoint} - folder not found")

print("\nTemporal heatmap generation complete")

Statistical Summary Report

Generate comprehensive statistics from heatmap:

from nidataset.volume import generate_heatmap_volume
import nibabel as nib
import numpy as np
import pandas as pd

# Generate probability heatmap
generate_heatmap_volume(
    nii_folder="dataset/masks/",
    output_path="reports/",
    output_filename="probability_map.nii.gz",
    use_mean=True,
    clip_to_input_range=True,
    normalize=False,
    debug=True
)

# Load heatmap
heatmap = nib.load("reports/probability_map.nii.gz")
data = heatmap.get_fdata()

# Calculate comprehensive statistics
stats = {
    'Total voxels': data.size,
    'Non-zero voxels': np.sum(data > 0),
    'Coverage (%)': (np.sum(data > 0) / data.size) * 100,
    'Min value': np.min(data),
    'Max value': np.max(data),
    'Mean value': np.mean(data),
    'Median value': np.median(data),
    'Std deviation': np.std(data),
    '25th percentile': np.percentile(data, 25),
    '75th percentile': np.percentile(data, 75),
    '95th percentile': np.percentile(data, 95)
}

# Create report
print("\n" + "=" * 60)
print("HEATMAP STATISTICAL REPORT")
print("=" * 60)

for metric, value in stats.items():
    if isinstance(value, float):
        print(f"{metric:.<40} {value:.2f}")
    else:
        print(f"{metric:.<40} {value}")

# Save to CSV
df = pd.DataFrame([stats])
df.to_csv("reports/heatmap_statistics.csv", index=False)
print("\nReport saved: reports/heatmap_statistics.csv")

Typical Workflow

from nidataset.volume import generate_heatmap_volume
import nibabel as nib
import numpy as np

# Step 1: Generate probability heatmap from multiple masks
generate_heatmap_volume(
    nii_folder="dataset/segmentations/",
    output_path="analysis/",
    output_filename="probability_map.nii.gz",
    use_mean=True,  # Get probability values
    clip_to_input_range=True,
    normalize=False,
    debug=True
)

# Step 2: Load and analyze
heatmap = nib.load("analysis/probability_map.nii.gz")
data = heatmap.get_fdata()

# Step 3: Threshold to create consensus
threshold = 0.5  # 50% agreement
consensus = (data >= threshold).astype(np.uint8)

# Step 4: Save consensus mask
consensus_img = nib.Nifti1Image(consensus, heatmap.affine)
nib.save(consensus_img, "analysis/consensus_mask.nii.gz")

# Step 5: Use for further analysis
# - Calculate overlap statistics
# - Extract high-confidence regions
# - Visualize results

Use Case Guide

Application	use_mean	clip_to_input_range	normalize	Interpretation
Probability maps	True	True	False	Values represent probability [0, 1]
Overlap counting	False	False	False	Raw counts of overlapping masks
Density visualization	False	False	True	Normalized density distribution
Consensus building	True	True	False	Agreement level across inputs
Ensemble predictions	True	True	False	Average model confidence
Hotspot detection	False	False	False	Absolute accumulation values

Troubleshooting

Common Issues and Solutions

Issue: ValueError about shape mismatch

• Solution: Ensure all input volumes have identical dimensions
• Check that all files are registered to same space
• Verify files are from same dataset/processing pipeline

Issue: Output values are all zeros

• Solution: Check that input files contain non-zero values
• Verify files are loading correctly
• Inspect individual input files

Issue: Memory error during processing

• Solution: Process fewer files at once
• Use smaller volume dimensions
• Increase available system memory

Issue: Output range unexpected

• Solution: Check clip_to_input_range and normalize settings
• Inspect input file value ranges with debug=True
• Verify processing options match intended use case

Issue: Heatmap doesn’t show expected patterns

• Solution: Verify all input files are correctly aligned
• Check spatial metadata (affine matrices) are consistent
• Inspect individual input files for quality issues

Performance Considerations

Processing Speed

Typical processing times (for 256x256x256 volumes):

• 10 files: ~5-10 seconds
• 50 files: ~30-60 seconds
• 100 files: ~1-2 minutes

Speed depends on:

• Volume dimensions
• Number of input files
• Disk I/O performance
• Available system memory

Memory Usage

Memory requirements:

• Base: Volume size × 8 bytes (float64)
• Example: 256×256×256 volume ≈ 128 MB
• Additional overhead for file loading and processing

Optimization Tips

• Process files in batches if memory limited
• Use SSD storage for faster I/O
• Ensure sufficient RAM for accumulation array
• Consider parallel processing for multiple heatmaps
