register_annotation

Apply a saved transformation to an annotation and optionally recalculate bounding box around the transformed region.

register_annotation(
    annotation_path: str,
    transform_path: str,
    registered_path: str,
    output_path: str,
    recalculate_bbox: bool = True,
    debug: bool = False
) -> None

Overview

This function transforms an annotation (typically a bounding box mask) using a previously computed registration transformation. It can either preserve the deformed annotation or create a new tight bounding box around the transformed region, which is particularly useful for maintaining axis-aligned boxes after rotation or spatial transformations.

Transformation pipeline:

1. Load: Reads annotation, transformation, and reference image
2. Transform: Applies transformation using nearest neighbor interpolation
3. Recalculate (optional): Computes new axis-aligned bounding box around transformed region
4. Output: Saves transformed annotation or recalculated bounding box

This is essential for:

• Maintaining axis-aligned bounding boxes after registration
• Propagating region-of-interest annotations to normalized space
• Ensuring annotations remain tight and efficient after rotation
• Transforming object detection labels for registered volumes
• Creating standardized annotation datasets

Parameters

Name	Type	Default	Description
annotation_path	str	required	Path to the input annotation file ending with _bbox.nii.gz.
transform_path	str	required	Path to the transformation file (.tfm) from a previous registration.
registered_path	str	required	Path to the registered image that defines the target space and grid.
output_path	str	required	Path where the transformed annotation will be saved (including filename).
recalculate_bbox	bool	True	If True, creates new axis-aligned bounding box. If False, preserves deformed shape.
debug	bool	False	If True, prints detailed information about the transformation and bounding box dimensions.

Returns

None — The function saves the transformed annotation to disk.

Output Files

The function generates a single file:

File	Description	When recalculate_bbox=True	When recalculate_bbox=False
User-specified output path	Transformed annotation	New axis-aligned bounding box	Deformed annotation shape

Bounding Box Recalculation

With Recalculation (recalculate_bbox=True)

Purpose: Creates a new tight, axis-aligned bounding box around the transformed region.

Process:

1. Apply transformation to annotation
2. Find all non-zero voxels in transformed space
3. Calculate minimum bounding box containing all voxels
4. Create new box: [x_min:x_max, y_min:y_max, z_min:z_max]

Advantages:

• Maintains axis alignment (important for many detection algorithms)
• Ensures tight bounding around transformed region
• Removes any deformation artifacts
• Produces clean rectangular boxes

Use when:

• Working with object detection frameworks
• Need axis-aligned boxes for downstream processing
• Rotation was applied during registration
• Box efficiency matters more than exact shape

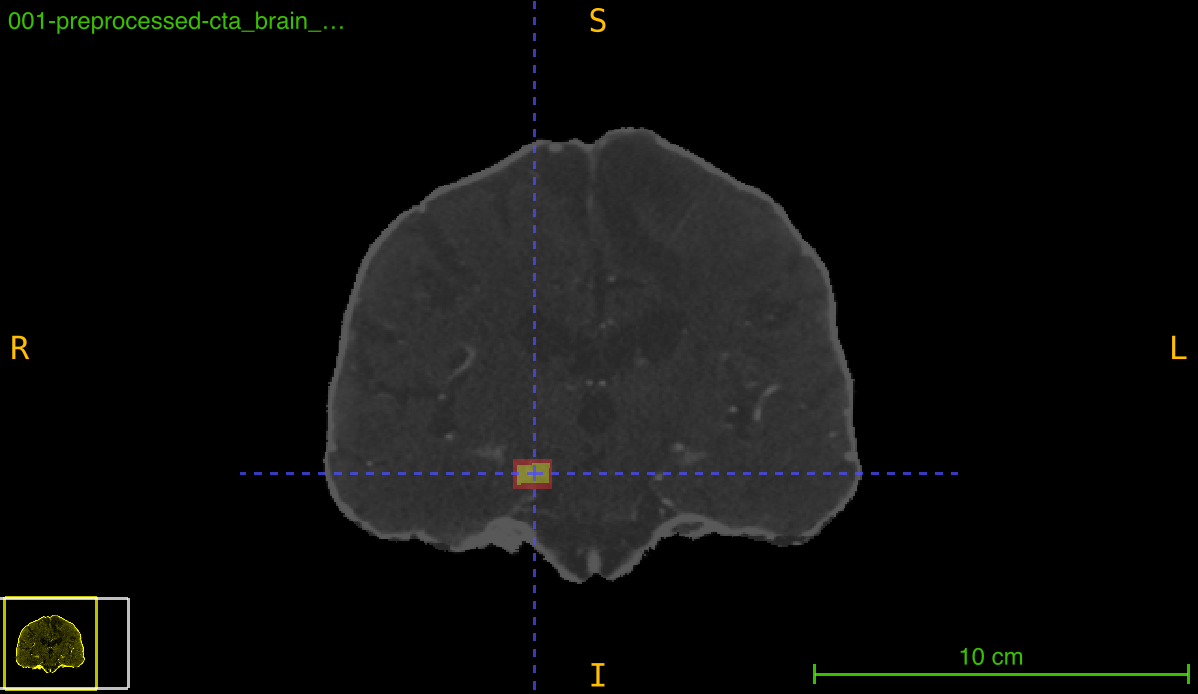

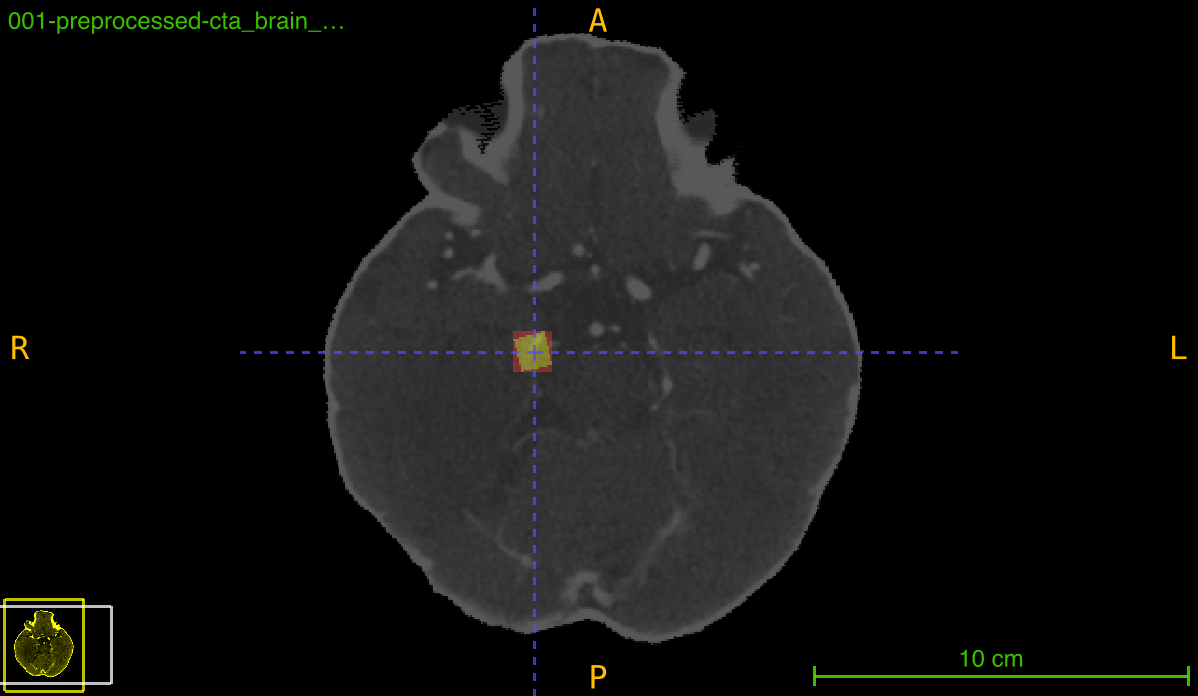

Visual Example:

Original Box:        After Rotation:       After Recalculation:
┌───────────┐       ╱───────────╲          ┌────────────┐
│           │      ╱             ╲         │ ╱────────╲ │
│  Region   │  →  ╱    Region     ╲    →   │╱  Region  ╲│
│           │     ╲               ╱        │╲──────────╱│
└───────────┘      ╲─────────────╱         └────────────┘
                   (Deformed)                 (Tight Box)

Without Recalculation (recalculate_bbox=False)

Purpose: Preserves the exact deformed shape after transformation.

Process:

1. Apply transformation to annotation
2. Save the transformed shape as-is

Advantages:

• Preserves exact spatial deformation
• More accurate for shape-critical applications
• Maintains relative positions within annotation

Use when:

• Exact deformed shape is important
• Working with precise spatial relationships
• Annotation is not a simple bounding box
• Deformation information needs preservation

Important Notes

Annotation Naming Convention

• All annotation files must end with _bbox.nii.gz
• This is enforced by the function’s validation
• Examples of valid names:
  • patient001_lesion_bbox.nii.gz
  • case001_tumor_bbox.nii.gz
  • vessel_roi_bbox.nii.gz
• Examples of invalid names:
  • patient001_lesion.nii.gz (missing _bbox)
  • lesion.nii.gz (missing _bbox)
  • bbox_lesion.nii.gz (_bbox not at end before .nii.gz)

File Requirements

• Input annotation must be a 3D NIfTI image (.nii.gz)
• Transformation file must exist from a prior registration
• Reference image defines the target coordinate space
• All three input files must exist before function call

Exceptions

Exception	Condition
FileNotFoundError	Any required input file (annotation, transform, or reference) does not exist
ValueError	Input annotation filename does not end with _bbox.nii.gz

Usage Notes

• Input Format: Only .nii.gz files ending with _bbox are accepted
• 3D Annotations Required: Input must be 3D NIfTI image
• Transform Dependency: Transformation must be from a completed registration
• Empty Annotations: If transformation results in empty annotation (no non-zero voxels), saves empty mask with warning
• Interpolation: Always uses nearest neighbor to preserve binary annotation values
• Output Directories: Automatically created if they don’t exist
• Coordinate System: Output coordinates are in the reference image space

Examples

Basic Usage - Recalculate Bounding Box

Transform annotation and create new axis-aligned box:

from nidataset.preprocessing import register_CTA, register_annotation

# Step 1: Register the CTA scan
register_CTA(
    nii_path="scan.nii.gz",
    mask_path="scan_mask.nii.gz",
    template_path="template.nii.gz",
    template_mask_path="template_mask.nii.gz",
    output_path="registered/",
    debug=True
)

# Step 2: Transform bounding box annotation with recalculation
register_annotation(
    annotation_path="scan_lesion_bbox.nii.gz",
    transform_path="registered/scan_transformation.tfm",
    registered_path="registered/scan_registered.nii.gz",
    output_path="registered/scan_lesion_bbox_registered.nii.gz",
    recalculate_bbox=True,
    debug=True
)
# Prints:
# Bounding box recalculated:
#   Original bbox size: 15847 voxels
#   New bbox: [45:98, 67:112, 34:78]
# Registered annotation saved at: 'registered/scan_lesion_bbox_registered.nii.gz'

Preserve Deformed Shape

Keep exact transformed annotation shape:

from nidataset.preprocessing import register_annotation

# Transform without recalculation - preserves deformation
register_annotation(
    annotation_path="scan_region_bbox.nii.gz",
    transform_path="registered/scan_transformation.tfm",
    registered_path="registered/scan_registered.nii.gz",
    output_path="registered/scan_region_registered.nii.gz",
    recalculate_bbox=False,  # Keep deformed shape
    debug=True
)
# Prints:
# Registered annotation saved at: 'registered/scan_region_registered.nii.gz'

Transform Multiple Annotations

Process several annotations from the same scan:

from nidataset.preprocessing import register_CTA, register_annotation
import os

# Register scan once
register_CTA(
    nii_path="patient001.nii.gz",
    mask_path="patient001_mask.nii.gz",
    template_path="template.nii.gz",
    template_mask_path="template_mask.nii.gz",
    output_path="registered/patient001/"
)

# Transform multiple bounding box annotations
annotations = [
    "patient001_lesion1_bbox.nii.gz",
    "patient001_lesion2_bbox.nii.gz",
    "patient001_vessel_bbox.nii.gz",
    "patient001_hemorrhage_bbox.nii.gz"
]

for annotation_file in annotations:
    output_name = annotation_file.replace("_bbox.nii.gz", "_bbox_registered.nii.gz")

    register_annotation(
        annotation_path=f"annotations/{annotation_file}",
        transform_path="registered/patient001/patient001_transformation.tfm",
        registered_path="registered/patient001/patient001_registered.nii.gz",
        output_path=f"registered/patient001/{output_name}",
        recalculate_bbox=True,
        debug=True
    )
    print(f"Registered: {annotation_file}")

Compare Recalculation vs Preservation

Evaluate the difference between both modes:

from nidataset.preprocessing import register_annotation
import nibabel as nib
import numpy as np

# Transform with recalculation
register_annotation(
    annotation_path="lesion_bbox.nii.gz",
    transform_path="transforms/transformation.tfm",
    registered_path="registered/scan_registered.nii.gz",
    output_path="comparison/bbox_recalculated.nii.gz",
    recalculate_bbox=True
)

# Transform without recalculation
register_annotation(
    annotation_path="lesion_bbox.nii.gz",
    transform_path="transforms/transformation.tfm",
    registered_path="registered/scan_registered.nii.gz",
    output_path="comparison/bbox_deformed.nii.gz",
    recalculate_bbox=False
)

# Load and compare
recalc = nib.load("comparison/bbox_recalculated.nii.gz").get_fdata()
deformed = nib.load("comparison/bbox_deformed.nii.gz").get_fdata()

print("\nComparison:")
print(f"  Recalculated volume: {np.sum(recalc > 0)} voxels")
print(f"  Deformed volume: {np.sum(deformed > 0)} voxels")
print(f"  Overlap: {np.sum((recalc > 0) & (deformed > 0))} voxels")
print(f"  Volume difference: {abs(np.sum(recalc > 0) - np.sum(deformed > 0))} voxels")

# Recalculated is typically larger (encompasses all deformed voxels)
# but maintains axis alignment

Batch Process Annotations

Transform all annotations in a dataset:

from nidataset.preprocessing import register_annotation
import os
from tqdm import tqdm

def batch_register_annotations(annotation_folder, transform_folder,
                               registered_folder, output_path,
                               recalculate_bbox=True):
    """Register all annotations in a folder."""

    annotation_files = [f for f in os.listdir(annotation_folder)
                       if f.endswith("_bbox.nii.gz")]

    os.makedirs(output_path, exist_ok=True)

    success_count = 0
    failed_cases = []

    for annotation_file in tqdm(annotation_files, desc="Registering annotations"):
        # Extract prefix by removing _bbox.nii.gz
        prefix = annotation_file.replace("_bbox.nii.gz", "")

        # Find corresponding transform and reference
        transform_file = os.path.join(transform_folder, f"{prefix}_transformation.tfm")
        reference_file = os.path.join(registered_folder, f"{prefix}_registered.nii.gz")

        if not os.path.exists(transform_file) or not os.path.exists(reference_file):
            failed_cases.append((prefix, "Missing files"))
            continue

        try:
            output_file = os.path.join(output_path,
                                      f"{prefix}_bbox_registered.nii.gz")

            register_annotation(
                annotation_path=os.path.join(annotation_folder, annotation_file),
                transform_path=transform_file,
                registered_path=reference_file,
                output_path=output_file,
                recalculate_bbox=recalculate_bbox,
                debug=False
            )
            success_count += 1

        except Exception as e:
            failed_cases.append((prefix, str(e)))

    print(f"\nBatch Registration Summary:")
    print(f"  Total: {len(annotation_files)}")
    print(f"  Success: {success_count}")
    print(f"  Failed: {len(failed_cases)}")

    if failed_cases:
        print("\nFailed cases:")
        for case, reason in failed_cases:
            print(f"  - {case}: {reason}")

    return success_count, failed_cases

# Use batch processing
batch_register_annotations(
    annotation_folder="data/bboxes/",
    transform_folder="data/registered/transforms/",
    registered_folder="data/registered/registered/",
    output_path="data/bboxes_registered/",
    recalculate_bbox=True
)

Extract Bounding Box Coordinates

Get transformed bounding box coordinates for analysis:

from nidataset.preprocessing import register_annotation
import nibabel as nib
import numpy as np

# Register annotation with recalculation
register_annotation(
    annotation_path="lesion_bbox.nii.gz",
    transform_path="transforms/transformation.tfm",
    registered_path="registered/scan_registered.nii.gz",
    output_path="registered/lesion_bbox_registered.nii.gz",
    recalculate_bbox=True,
    debug=True
)

# Load registered annotation
registered_bbox = nib.load("registered/lesion_bbox_registered.nii.gz")
bbox_data = registered_bbox.get_fdata()

# Extract bounding box coordinates
coords = np.argwhere(bbox_data > 0)

if coords.size > 0:
    z_min, y_min, x_min = coords.min(axis=0)
    z_max, y_max, x_max = coords.max(axis=0)

    # Calculate dimensions
    width = x_max - x_min + 1
    height = y_max - y_min + 1
    depth = z_max - z_min + 1
    volume = width * height * depth

    print("\nBounding Box Information:")
    print(f"  Coordinates: [{x_min}:{x_max}, {y_min}:{y_max}, {z_min}:{z_max}]")
    print(f"  Dimensions: {width} × {height} × {depth}")
    print(f"  Volume: {volume} voxels")
    print(f"  Center: ({(x_min+x_max)/2:.1f}, {(y_min+y_max)/2:.1f}, {(z_min+z_max)/2:.1f})")
else:
    print("Warning: Bounding box is empty")

Create Object Detection Dataset

Prepare annotations for machine learning:

from nidataset.preprocessing import register_CTA, register_annotation
import nibabel as nib
import numpy as np
import json
import os

def create_detection_dataset(scan_folder, bbox_folder, output_folder,
                            template_path, template_mask_path):
    """
    Create normalized dataset with registered scans and bounding boxes.
    Exports metadata in COCO-like format for object detection.
    """

    os.makedirs(f"{output_folder}/scans", exist_ok=True)
    os.makedirs(f"{output_folder}/annotations", exist_ok=True)

    scan_files = [f for f in os.listdir(scan_folder) if f.endswith(".nii.gz")]

    dataset_metadata = {
        "images": [],
        "annotations": []
    }

    for scan_file in scan_files:
        case_id = scan_file.replace(".nii.gz", "")
        print(f"\nProcessing {case_id}...")

        # Register scan
        register_CTA(
            nii_path=os.path.join(scan_folder, scan_file),
            mask_path=os.path.join(scan_folder.replace("scans", "masks"),
                                  f"{case_id}_mask.nii.gz"),
            template_path=template_path,
            template_mask_path=template_mask_path,
            output_path=f"{output_folder}/scans/{case_id}/",
            cleanup=True
        )

        # Register bounding box
        bbox_file = os.path.join(bbox_folder, f"{case_id}_bbox.nii.gz")

        if not os.path.exists(bbox_file):
            print(f"  Warning: No bounding box found for {case_id}")
            continue

        register_annotation(
            annotation_path=bbox_file,
            transform_path=f"{output_folder}/scans/{case_id}/{case_id}_transformation.tfm",
            registered_path=f"{output_folder}/scans/{case_id}/{case_id}_registered.nii.gz",
            output_path=f"{output_folder}/annotations/{case_id}_bbox_registered.nii.gz",
            recalculate_bbox=True,
            debug=False
        )

        # Extract bbox coordinates
        bbox_data = nib.load(
            f"{output_folder}/annotations/{case_id}_bbox_registered.nii.gz"
        ).get_fdata()
        coords = np.argwhere(bbox_data > 0)

        if coords.size > 0:
            z_min, y_min, x_min = coords.min(axis=0)
            z_max, y_max, x_max = coords.max(axis=0)

            # Add to metadata
            dataset_metadata["images"].append({
                "id": case_id,
                "file_name": f"scans/{case_id}/{case_id}_registered.nii.gz"
            })

            dataset_metadata["annotations"].append({
                "image_id": case_id,
                "bbox": [int(x_min), int(y_min), int(z_min),
                        int(x_max), int(y_max), int(z_max)],
                "area": int((x_max - x_min) * (y_max - y_min) * (z_max - z_min))
            })

            print(f"  Registered with bbox: [{x_min}:{x_max}, {y_min}:{y_max}, {z_min}:{z_max}]")

    # Save metadata
    with open(f"{output_folder}/dataset_metadata.json", "w") as f:
        json.dump(dataset_metadata, f, indent=2)

    print(f"\nDataset created: {len(dataset_metadata['images'])} scans with annotations")
    print(f"Metadata saved: {output_folder}/dataset_metadata.json")

# Create detection dataset
create_detection_dataset(
    scan_folder="raw_data/scans/",
    bbox_folder="raw_data/bboxes/",
    output_folder="detection_dataset/",
    template_path="atlas/template.nii.gz",
    template_mask_path="atlas/template_mask.nii.gz"
)

Visualize Transformed Annotations

Create visual comparison of annotations:

from nidataset.preprocessing import register_annotation
import nibabel as nib
import matplotlib.pyplot as plt
import numpy as np

# Register with recalculation
register_annotation(
    annotation_path="lesion_bbox.nii.gz",
    transform_path="transforms/transformation.tfm",
    registered_path="registered/scan_registered.nii.gz",
    output_path="registered/bbox_recalc.nii.gz",
    recalculate_bbox=True
)

# Register without recalculation
register_annotation(
    annotation_path="lesion_bbox.nii.gz",
    transform_path="transforms/transformation.tfm",
    registered_path="registered/scan_registered.nii.gz",
    output_path="registered/bbox_deformed.nii.gz",
    recalculate_bbox=False
)

# Load for visualization
scan = nib.load("registered/scan_registered.nii.gz").get_fdata()
bbox_recalc = nib.load("registered/bbox_recalc.nii.gz").get_fdata()
bbox_deformed = nib.load("registered/bbox_deformed.nii.gz").get_fdata()

# Select middle slice
mid_slice = scan.shape[2] // 2

# Create visualization
fig, axes = plt.subplots(1, 3, figsize=(18, 6))

# Original scan
axes[0].imshow(scan[:, :, mid_slice], cmap='gray')
axes[0].set_title('Registered Scan', fontsize=14)
axes[0].axis('off')

# With recalculated bbox
axes[1].imshow(scan[:, :, mid_slice], cmap='gray')
axes[1].imshow(bbox_recalc[:, :, mid_slice], cmap='Reds', alpha=0.4)
axes[1].set_title('Recalculated BBox\n(Axis-aligned)', fontsize=14)
axes[1].axis('off')

# With deformed bbox
axes[2].imshow(scan[:, :, mid_slice], cmap='gray')
axes[2].imshow(bbox_deformed[:, :, mid_slice], cmap='Blues', alpha=0.4)
axes[2].set_title('Deformed BBox\n(Preserves shape)', fontsize=14)
axes[2].axis('off')

plt.tight_layout()
plt.savefig('annotation_comparison.png', dpi=150, bbox_inches='tight')
print("Visualization saved: annotation_comparison.png")

Handle Empty Annotations

Properly handle cases where transformation results in empty annotation:

from nidataset.preprocessing import register_annotation
import nibabel as nib
import numpy as np

def safe_register_annotation(annotation_path, transform_path,
                             reference_path, output_path,
                             recalculate_bbox=True):
    """Register annotation with empty annotation handling."""

    # Register annotation
    register_annotation(
        annotation_path=annotation_path,
        transform_path=transform_path,
        registered_path=reference_path,
        output_path=output_path,
        recalculate_bbox=recalculate_bbox,
        debug=True
    )

    # Check if result is empty
    result = nib.load(output_path).get_fdata()

    if np.sum(result > 0) == 0:
        print(f"Warning: Registered annotation is empty")
        print(f"  This may indicate the annotation was transformed outside the")
        print(f"  reference image boundaries or registration misalignment.")
        return False
    else:
        print(f"Annotation registered successfully")
        print(f"  Contains {np.sum(result > 0)} voxels")
        return True

# Use safe registration
success = safe_register_annotation(
    annotation_path="small_lesion_bbox.nii.gz",
    transform_path="transforms/transformation.tfm",
    reference_path="registered/scan_registered.nii.gz",
    output_path="registered/lesion_bbox_registered.nii.gz"
)

if not success:
    print("Consider checking:")
    print("  1. Original annotation location")
    print("  2. Registration quality")
    print("  3. Template coverage")

Integration with Detection Pipeline

Complete workflow for object detection:

from nidataset.preprocessing import register_CTA_dataset, register_annotation
import os
import pandas as pd

def prepare_detection_dataset(base_dir, template_path, template_mask_path):
    """
    Prepare a complete object detection dataset.

    Expected structure:
    base_dir/
    ├── scans/
    ├── masks/
    └── bounding_boxes/  (files ending with _bbox.nii.gz)
    """

    print("=" * 60)
    print("STEP 1: Register CTA scans")
    print("=" * 60)

    # Register all scans
    register_CTA_dataset(
        nii_folder=f"{base_dir}/scans/",
        mask_folder=f"{base_dir}/masks/",
        template_path=template_path,
        template_mask_path=template_mask_path,
        output_path=f"{base_dir}/registered/",
        saving_mode="case",
        cleanup=True,
        debug=True
    )

    print("\n" + "=" * 60)
    print("STEP 2: Transform bounding box annotations")
    print("=" * 60)

    # Get list of cases
    cases = [d for d in os.listdir(f"{base_dir}/registered/")
             if os.path.isdir(os.path.join(f"{base_dir}/registered/", d))]

    bbox_records = []

    for case in cases:
        bbox_file = f"{base_dir}/bounding_boxes/{case}_bbox.nii.gz"

        if not os.path.exists(bbox_file):
            print(f"No bounding box found for {case}")
            continue

        try:
            output_path = f"{base_dir}/registered/{case}/{case}_bbox_registered.nii.gz"

            register_annotation(
                annotation_path=bbox_file,
                transform_path=f"{base_dir}/registered/{case}/{case}_transformation.tfm",
                registered_path=f"{base_dir}/registered/{case}/{case}_registered.nii.gz",
                output_path=output_path,
                recalculate_bbox=True,
                debug=False
            )

            # Extract bbox coordinates
            import nibabel as nib
            import numpy as np

            bbox_data = nib.load(output_path).get_fdata()
            coords = np.argwhere(bbox_data > 0)

            if coords.size > 0:
                z_min, y_min, x_min = coords.min(axis=0)
                z_max, y_max, x_max = coords.max(axis=0)

                bbox_records.append({
                    'case_id': case,
                    'x_min': int(x_min),
                    'y_min': int(y_min),
                    'z_min': int(z_min),
                    'x_max': int(x_max),
                    'y_max': int(y_max),
                    'z_max': int(z_max),
                    'width': int(x_max - x_min + 1),
                    'height': int(y_max - y_min + 1),
                    'depth': int(z_max - z_min + 1)
                })

                print(f"{case}: bbox [{x_min}:{x_max}, {y_min}:{y_max}, {z_min}:{z_max}]")
            else:
                print(f"{case}: Empty annotation after transformation")

        except Exception as e:
            print(f"{case}: Failed - {str(e)}")

    # Save bounding box catalog
    if bbox_records:
        df = pd.DataFrame(bbox_records)
        catalog_path = f"{base_dir}/bbox_catalog.csv"
        df.to_csv(catalog_path, index=False)

        print("\n" + "=" * 60)
        print("SUMMARY")
        print("=" * 60)
        print(f"Processed {len(bbox_records)} cases")
        print(f"Catalog saved: {catalog_path}")
        print("\nBounding box statistics:")
        print(f"  Mean width: {df['width'].mean():.1f} voxels")
        print(f"  Mean height: {df['height'].mean():.1f} voxels")
        print(f"  Mean depth: {df['depth'].mean():.1f} voxels")

# Run complete pipeline
prepare_detection_dataset(
    base_dir="detection_project",
    template_path="atlas/template.nii.gz",
    template_mask_path="atlas/template_mask.nii.gz"
)

Typical Workflow

from nidataset.preprocessing import register_CTA, register_annotation

# Step 1: Register scan
register_CTA(
    nii_path="scan.nii.gz",
    mask_path="scan_mask.nii.gz",
    template_path="template.nii.gz",
    template_mask_path="template_mask.nii.gz",
    output_path="registered/"
)

# Step 2: Transform bounding box annotations
register_annotation(
    annotation_path="scan_lesion_bbox.nii.gz",
    transform_path="registered/scan_transformation.tfm",
    registered_path="registered/scan_registered.nii.gz",
    output_path="registered/scan_lesion_bbox_registered.nii.gz",
    recalculate_bbox=True  # For axis-aligned boxes
)

# Step 3: Use registered annotations for:
# - Object detection training
# - Region-of-interest analysis
# - Automated lesion detection
# - Bounding box-based segmentation
