resampling

Resample a 3D medical imaging volume to a target size while preserving the physical field of view through automatic voxel spacing adjustment.

resampling(
    nii_path: str,
    output_path: str,
    desired_volume: tuple,
    debug: bool = False
) -> None

Overview

This function changes the dimensions of a 3D volume to a target size while maintaining the original physical extent (field of view) by automatically calculating and applying new voxel spacing. Unlike simple array resizing, resampling ensures that anatomical structures retain their true physical dimensions.

Key process:

1. Calculate new spacing: new_spacing = old_spacing × (old_size / new_size)
2. Apply B-spline interpolation: Smooth, high-quality resampling
3. Preserve field of view: Physical dimensions remain constant
4. Maintain metadata: Origin and direction are preserved

This is essential for:

• Standardizing volume dimensions for deep learning models
• Creating uniform datasets from variable-sized scans
• Reducing computational requirements while preserving anatomy
• Preparing data for fixed-size network inputs
• Balancing detail and processing speed

Parameters

Name	Type	Default	Description
nii_path	str	required	Path to the input volume in .nii.gz format.
output_path	str	required	Directory where the resampled volume will be saved. Created automatically if it doesn’t exist.
desired_volume	tuple	required	Target volume size as (X, Y, Z). Must contain exactly three integers.
debug	bool	False	If True, prints the output file path.

Returns

None – The function saves the resampled volume to disk.

Output File

The resampled volume is saved as:

<PREFIX>_resampled.nii.gz

Example: Input scan_042.nii.gz → Output scan_042_resampled.nii.gz

Output Properties

• Dimensions: Match desired_volume exactly
• Voxel spacing: Automatically adjusted to preserve field of view
• Origin: Preserved from original volume
• Direction: Preserved from original volume
• Data type: Preserved from original volume

Field of View Preservation

The function automatically calculates new voxel spacing to maintain physical dimensions:

new_spacing = original_spacing × (original_size / desired_size)

Example:

Original:
  Size: 512 × 512 × 300 voxels
  Spacing: 0.5 × 0.5 × 1.0 mm
  Field of View: 256 × 256 × 300 mm

After resampling to (256, 256, 128):
  Size: 256 × 256 × 128 voxels
  Spacing: 1.0 × 1.0 × 2.34 mm (automatically calculated)
  Field of View: 256 × 256 × 300 mm (preserved!)

This ensures anatomical structures maintain their true physical size.

Interpolation Method

B-spline Interpolation:

• Provides smooth, continuous interpolation
• Higher quality than linear interpolation
• Reduces artifacts and aliasing
• Suitable for medical imaging applications
• Balances quality and computational cost

Advantages over other methods:

• vs Nearest Neighbor: Much smoother, no blocky artifacts
• vs Linear: Smoother gradients, better for visualization
• vs Higher-order: Good balance of quality and speed

Target Volume Selection

Choose desired_volume based on your requirements:

Common Sizes

Target Size	Voxel Count	Use Case	Computational Cost
(128, 128, 128)	2.1M	Fast training, prototyping	Low
(224, 224, 128)	6.4M	Standard deep learning	Medium
(256, 256, 256)	16.8M	High quality, detailed analysis	High
(512, 512, 256)	67.1M	Clinical applications, fine details	Very High

Selection Guidelines

Consider:

• Input size requirements of your neural network
• Available GPU memory for batch processing
• Level of detail needed for your task
• Processing time constraints
• Storage requirements

Anisotropic sizes (e.g., 224×224×128):

• Common in medical imaging due to slice thickness
• Matches typical CT/MRI acquisition patterns
• Reduces computational cost in slice direction

Exceptions

Exception	Condition
FileNotFoundError	The input file does not exist
ValueError	File is not in .nii.gz format
ValueError	desired_volume does not contain exactly 3 values

Usage Notes

• Input Format: Only .nii.gz files are accepted
• 3D Volumes Required: Input must be a 3D NIfTI image
• Output Directory: Automatically created if it doesn’t exist
• Metadata Preservation: Origin, direction, and data type are maintained
• Memory Usage: Large target volumes may require significant memory
• Processing Time: Scales with output volume size

Examples

Basic Usage

Resample to standard size:

from nidataset.preprocessing import resampling

resampling(
    nii_path="scans/patient_001.nii.gz",
    output_path="resampled/",
    desired_volume=(224, 224, 128)
)
# Output: resampled/patient_001_resampled.nii.gz

With Debug Output

Enable path printing:

resampling(
    nii_path="data/scan.nii.gz",
    output_path="processed/",
    desired_volume=(256, 256, 256),
    debug=True
)
# Prints: Resampled image saved at: 'processed/scan_resampled.nii.gz'

Small Size for Fast Processing

Reduce dimensions for quick training:

resampling(
    nii_path="training/full_res.nii.gz",
    output_path="training/low_res/",
    desired_volume=(128, 128, 128),
    debug=True
)
# Faster training with reduced resolution

High Resolution for Clinical Use

Maintain detail for diagnostic applications:

resampling(
    nii_path="clinical/diagnostic_scan.nii.gz",
    output_path="clinical/processed/",
    desired_volume=(512, 512, 256),
    debug=True
)
# High resolution for accurate diagnosis

Anisotropic Resampling

Match typical medical imaging dimensions:

resampling(
    nii_path="ct_scan.nii.gz",
    output_path="preprocessed/",
    desired_volume=(224, 224, 96),  # Different Z resolution
    debug=True
)
# Reflects typical slice thickness

Verifying Field of View Preservation

Check that physical dimensions are maintained:

import nibabel as nib
import numpy as np
from nidataset.preprocessing import resampling

# Original volume
original = nib.load("original/scan.nii.gz")
orig_size = np.array(original.shape)
orig_spacing = np.array(original.header.get_zooms()[:3])
orig_fov = orig_size * orig_spacing

print("Original:")
print(f"  Size: {orig_size}")
print(f"  Spacing: {orig_spacing}")
print(f"  FOV: {orig_fov} mm")

# Resample
target_size = (224, 224, 128)
resampling(
    nii_path="original/scan.nii.gz",
    output_path="resampled/",
    desired_volume=target_size,
    debug=True
)

# Resampled volume
resampled = nib.load("resampled/scan_resampled.nii.gz")
resamp_size = np.array(resampled.shape)
resamp_spacing = np.array(resampled.header.get_zooms()[:3])
resamp_fov = resamp_size * resamp_spacing

print("\nResampled:")
print(f"  Size: {resamp_size}")
print(f"  Spacing: {resamp_spacing}")
print(f"  FOV: {resamp_fov} mm")

print(f"\nFOV difference: {np.abs(orig_fov - resamp_fov)} mm")
print(f"FOV preserved: {np.allclose(orig_fov, resamp_fov, atol=0.1)}")

Quality Assessment

Evaluate resampling quality:

import nibabel as nib
import numpy as np
from nidataset.preprocessing import resampling

# Resample
resampling(
    nii_path="qa/test.nii.gz",
    output_path="qa/resampled/",
    desired_volume=(224, 224, 128),
    debug=True
)

# Load both
original = nib.load("qa/test.nii.gz")
resampled = nib.load("qa/resampled/test_resampled.nii.gz")

orig_data = original.get_fdata()
resamp_data = resampled.get_fdata()

print("\nQuality Assessment:")

# 1. Dimensions
print(f"  Target dimensions: (224, 224, 128)")
print(f"  Actual dimensions: {resamp_data.shape}")
print(f"  Correct: {resamp_data.shape == (224, 224, 128)}")

# 2. Intensity preservation
print(f"\n  Original intensity range: [{orig_data.min():.1f}, {orig_data.max():.1f}]")
print(f"  Resampled intensity range: [{resamp_data.min():.1f}, {resamp_data.max():.1f}]")

# 3. Mean intensity (should be similar)
orig_mean = orig_data[orig_data > 0].mean()
resamp_mean = resamp_data[resamp_data > 0].mean()
print(f"\n  Original mean: {orig_mean:.2f}")
print(f"  Resampled mean: {resamp_mean:.2f}")
print(f"  Difference: {abs(orig_mean - resamp_mean):.2f} ({abs(orig_mean - resamp_mean)/orig_mean*100:.1f}%)")

# 4. Check for artifacts
if orig_data.min() >= 0 and resamp_data.min() < 0:
    print(f"\n  ⚠️ Warning: Negative values introduced")
else:
    print(f"\n  ✓ No unexpected negative values")

Batch Processing Multiple Files

Resample a set of volumes:

import os
from nidataset.preprocessing import resampling

scan_folder = "raw_scans/"
output_folder = "resampled_scans/"
target_size = (224, 224, 128)

for filename in os.listdir(scan_folder):
    if filename.endswith('.nii.gz'):
        print(f"Processing {filename}...")

        resampling(
            nii_path=os.path.join(scan_folder, filename),
            output_path=output_folder,
            desired_volume=target_size,
            debug=True
        )

print(f"\nProcessed {len(os.listdir(scan_folder))} files")

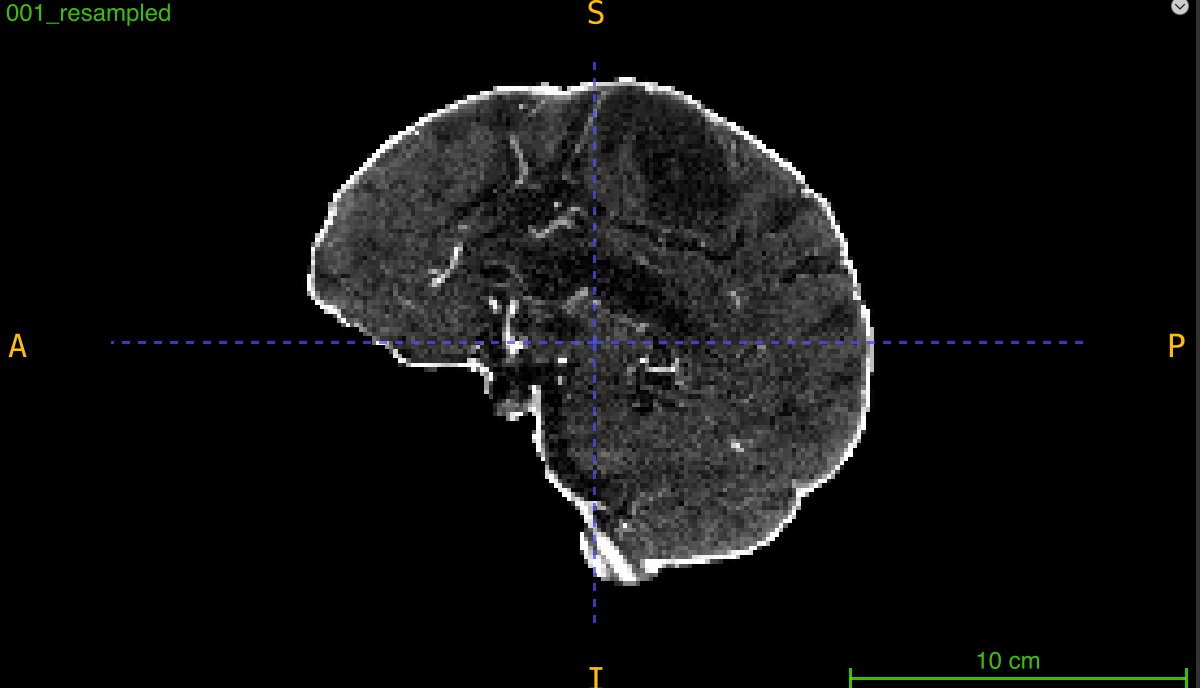

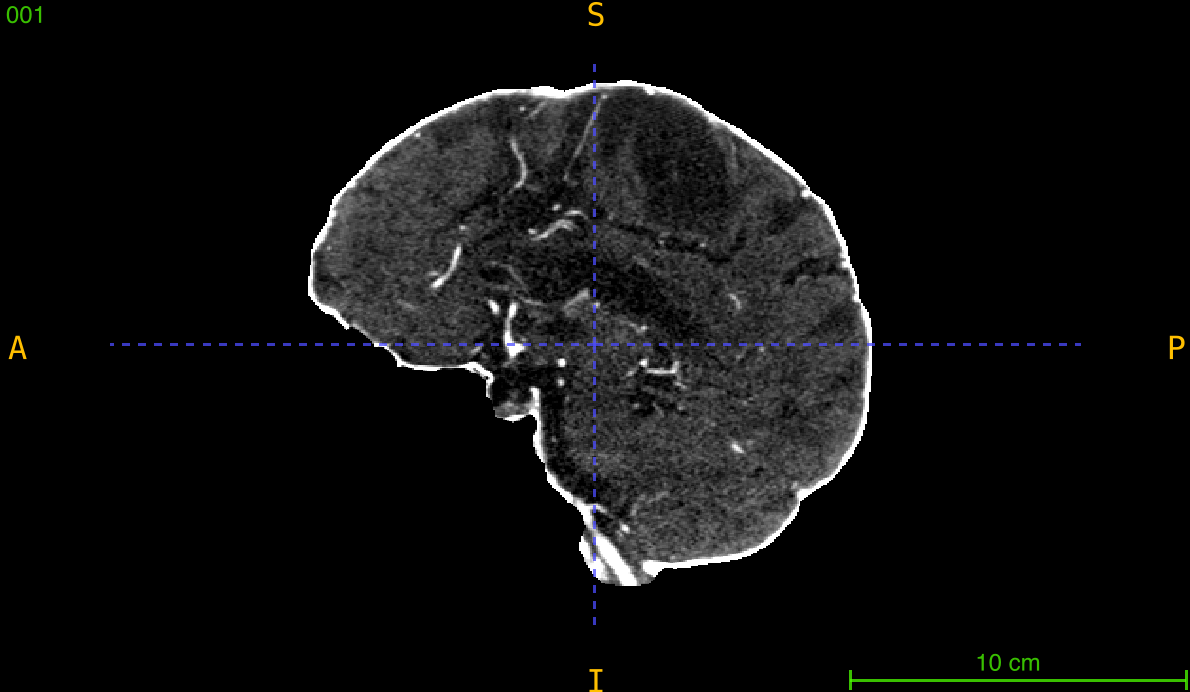

Comparing Interpolation Quality

Visualize resampling results:

import nibabel as nib
import matplotlib.pyplot as plt
from nidataset.preprocessing import resampling

# Resample
resampling(
    nii_path="visualization/scan.nii.gz",
    output_path="visualization/resampled/",
    desired_volume=(224, 224, 128),
    debug=True
)

# Load and compare
original = nib.load("visualization/scan.nii.gz")
resampled = nib.load("visualization/resampled/scan_resampled.nii.gz")

orig_data = original.get_fdata()
resamp_data = resampled.get_fdata()

# Extract middle slices
orig_mid = orig_data.shape[2] // 2
resamp_mid = resamp_data.shape[2] // 2

fig, axes = plt.subplots(1, 2, figsize=(12, 5))

axes[0].imshow(orig_data[:, :, orig_mid], cmap='gray')
axes[0].set_title(f'Original ({orig_data.shape})')
axes[0].axis('off')

axes[1].imshow(resamp_data[:, :, resamp_mid], cmap='gray')
axes[1].set_title(f'Resampled ({resamp_data.shape})')
axes[1].axis('off')

plt.tight_layout()
plt.savefig('resampling_comparison.png', dpi=150)
print("Comparison saved: resampling_comparison.png")

Memory-Efficient Workflow

Calculate memory requirements:

import nibabel as nib
import numpy as np
from nidataset.preprocessing import resampling

def estimate_memory(shape, dtype='float32'):
    """Estimate memory in GB."""
    bytes_per_voxel = np.dtype(dtype).itemsize
    total_bytes = np.prod(shape) * bytes_per_voxel
    return total_bytes / (1024**3)

# Check original
original = nib.load("large_volume.nii.gz")
orig_memory = estimate_memory(original.shape)
print(f"Original memory: {orig_memory:.2f} GB")

# Calculate resampled memory
target_size = (224, 224, 128)
target_memory = estimate_memory(target_size)
print(f"After resampling: {target_memory:.2f} GB")
print(f"Memory reduction: {(1 - target_memory/orig_memory)*100:.1f}%")

# Proceed with resampling
if target_memory < 2.0:  # Less than 2GB
    resampling(
        nii_path="large_volume.nii.gz",
        output_path="reduced/",
        desired_volume=target_size,
        debug=True
    )
    print("Resampling completed")
else:
    print("Warning: Target size still requires significant memory")

Integration with Deep Learning Pipeline

Prepare data for model input:

from nidataset.preprocessing import resampling
import nibabel as nib
import numpy as np

def prepare_for_training(input_path, output_path, target_size=(224, 224, 128)):
    """Resample and normalize for training."""

    # Step 1: Resample
    resampling(
        nii_path=input_path,
        output_path=output_path,
        desired_volume=target_size,
        debug=True
    )

    # Step 2: Load resampled
    scan_name = os.path.basename(input_path).replace('.nii.gz', '')
    resampled_path = f"{output_path}/{scan_name}_resampled.nii.gz"
    img = nib.load(resampled_path)
    data = img.get_fdata()

    # Step 3: Normalize
    data = (data - data.mean()) / data.std()

    # Step 4: Save normalized
    normalized = nib.Nifti1Image(data, img.affine)
    normalized_path = f"{output_path}/{scan_name}_ready.nii.gz"
    nib.save(normalized, normalized_path)

    print(f"Training-ready volume: {normalized_path}")
    return normalized_path

# Use in pipeline
prepare_for_training(
    "raw_data/scan_001.nii.gz",
    "training_ready/",
    target_size=(224, 224, 128)
)

Multi-Resolution Analysis

Create pyramid of resolutions:

from nidataset.preprocessing import resampling

input_file = "analysis/scan.nii.gz"
resolutions = {
    'coarse': (112, 112, 64),
    'medium': (224, 224, 128),
    'fine': (448, 448, 256)
}

for level, size in resolutions.items():
    print(f"\nCreating {level} resolution...")

    resampling(
        nii_path=input_file,
        output_path=f"multi_res/{level}/",
        desired_volume=size,
        debug=True
    )

print("\nMulti-resolution pyramid created")

Preserving Metadata

Verify all metadata is maintained:

import nibabel as nib
import numpy as np
from nidataset.preprocessing import resampling

# Original
original = nib.load("metadata_test/scan.nii.gz")
orig_affine = original.affine
orig_origin = original.affine[:3, 3]
orig_direction = original.affine[:3, :3]

print("Original metadata:")
print(f"  Origin: {orig_origin}")
print(f"  Direction:\n{orig_direction}")

# Resample
resampling(
    nii_path="metadata_test/scan.nii.gz",
    output_path="metadata_test/output/",
    desired_volume=(224, 224, 128),
    debug=True
)

# Check resampled
resampled = nib.load("metadata_test/output/scan_resampled.nii.gz")
resamp_affine = resampled.affine
resamp_origin = resampled.affine[:3, 3]
resamp_direction = resampled.affine[:3, :3] / np.array(resampled.header.get_zooms()[:3])

print("\nResampled metadata:")
print(f"  Origin: {resamp_origin}")
print(f"  Direction:\n{resamp_direction}")

print("\nMetadata preserved:")
print(f"  Origin match: {np.allclose(orig_origin, resamp_origin)}")
print(f"  Direction match: {np.allclose(orig_direction/np.linalg.norm(orig_direction), resamp_direction/np.linalg.norm(resamp_direction))}")

Typical Workflow

from nidataset.preprocessing import resampling
import nibabel as nib

# 1. Check original dimensions
original = nib.load("data/scan.nii.gz")
print(f"Original shape: {original.shape}")
print(f"Original spacing: {original.header.get_zooms()[:3]}")

# 2. Resample to target size
target_size = (224, 224, 128)
resampling(
    nii_path="data/scan.nii.gz",
    output_path="data/resampled/",
    desired_volume=target_size,
    debug=True
)

# 3. Verify result
resampled = nib.load("data/resampled/scan_resampled.nii.gz")
print(f"\nResampled shape: {resampled.shape}")
print(f"Resampled spacing: {resampled.header.get_zooms()[:3]}")

# 4. Use resampled volume for:
# - Training neural networks with fixed input size
# - Batch processing without dimension mismatches
# - Reducing computational requirements
# - Standardizing datasets from different sources
