mip

Generate a sliding-window Maximum Intensity Projection from a 3D medical imaging volume to enhance high-intensity structures like blood vessels.

mip(
    nii_path: str,
    output_path: str,
    window_size: int = 10,
    view: str = "axial",
    debug: bool = False
) -> None

Overview

Maximum Intensity Projection (MIP) is an enhancement technique that highlights high-intensity structures by replacing each voxel with the maximum intensity value found in its local neighborhood. This function applies a sliding-window approach where each output slice is created by projecting a local neighborhood of slices along a chosen anatomical axis.

Key characteristics:

• Local projection: Each slice uses a neighborhood centered at its position (not global)
• Same dimensions: Output volume has identical shape to input
• Enhanced visibility: Bright structures (vessels, contrast) become more prominent
• Preserved spatial information: Unlike global MIP, spatial relationships are maintained

The technique is particularly valuable for:

• Enhancing vascular structures in angiography
• Improving contrast-enhanced region visibility
• Preprocessing for vessel detection and segmentation
• Reducing noise while preserving peak intensities

Parameters

Name	Type	Default	Description
nii_path	str	required	Path to the input medical volume in .nii.gz format.
output_path	str	required	Directory where the MIP volume will be saved. Created automatically if it doesn’t exist.
window_size	int	10	Number of slices on each side of current position for projection. Effective window: 2×size+1.
view	str	"axial"	Anatomical plane for projection: "axial", "coronal", or "sagittal".
debug	bool	False	If True, prints progress information and output filename.

Returns

None – The function saves the MIP volume to disk.

Output File

The MIP volume is saved as:

<PREFIX>_mip_<VIEW>.nii.gz

Example: Input scan_042.nii.gz → Output scan_042_mip_axial.nii.gz

Output Volume Properties

• Dimensions: Same as input volume
• Data type: Same as input (typically float)
• Spatial metadata: Inherits affine transformation from input
• Intensity range: Equal to or higher than input (due to max operation)

Sliding Window Mechanism

For each slice at position i, the function:

1. Defines a neighborhood: [i - window_size, i + window_size]
2. Extracts the subvolume within this range
3. Computes the maximum intensity across the neighborhood
4. Assigns the result to output slice i

Effective window length: 2 × window_size + 1

Example (window_size=3):

Slice index: 10
Window range: [7, 13]  (7 slices total)
Output slice 10 = max(slices 7, 8, 9, 10, 11, 12, 13)

Window Size Selection

The window_size parameter controls the neighborhood extent:

Window Size	Effective Slices	Effect	Best For
3-5	7-11 slices	Minimal smoothing, local enhancement	Fine vessel details
10-15	21-31 slices	Moderate enhancement, balanced	General purpose
20-30	41-61 slices	Strong enhancement, wider context	Large vessel structures
40+	81+ slices	Maximum enhancement, near-global view	Overview visualization

Trade-off considerations:

• Smaller windows: Preserve fine details but provide less enhancement
• Larger windows: Stronger enhancement but may blur details and mix unrelated structures
• Optimal size: Depends on structure size and spacing between slices

Anatomical Views

The view parameter determines the projection axis:

View	Projection Axis	Direction	Common Applications
"axial"	Z-axis	Top to bottom	Brain vessels, chest imaging
"coronal"	Y-axis	Front to back	Spine vessels, full body
"sagittal"	X-axis	Left to right	Bilateral vessel comparison

Exceptions

Exception	Condition
FileNotFoundError	The input file does not exist
ValueError	File is not in .nii.gz format
ValueError	Input is not a 3D volume
ValueError	Invalid view parameter

Usage Notes

• Input Format: Only .nii.gz files are accepted
• 3D Volumes Required: Input must be a 3D NIfTI image
• Edge Handling: Windows are clipped at volume boundaries
• Output Directory: Automatically created if it doesn’t exist
• Spatial Metadata: Affine transformation is preserved
• Progress Display: Shows progress bar during processing

Examples

Basic Usage

Generate MIP with default settings:

from nidataset.preprocessing import mip

mip(
    nii_path="angiography/vessel_scan.nii.gz",
    output_path="enhanced/",
    window_size=10,
    view="axial"
)
# Output: enhanced/vessel_scan_mip_axial.nii.gz

With Debug Information

Enable verbose output:

mip(
    nii_path="ct_angio.nii.gz",
    output_path="mip_results/",
    window_size=15,
    view="coronal",
    debug=True
)
# Prints progress bar and:
# MIP saved at: mip_results/ct_angio_mip_coronal.nii.gz

Strong Enhancement for Large Vessels

Use large window for prominent structures:

mip(
    nii_path="aorta_scan.nii.gz",
    output_path="enhanced_vessels/",
    window_size=25,  # 51-slice window
    view="axial",
    debug=True
)

Fine Detail Preservation

Use small window for detailed structures:

mip(
    nii_path="cerebral_vessels.nii.gz",
    output_path="detail_preserved/",
    window_size=5,  # 11-slice window
    view="axial",
    debug=True
)

Multi-View Processing

Generate MIP for all anatomical views:

from nidataset.preprocessing import mip

scan_file = "vessel_scan.nii.gz"
views = ["axial", "coronal", "sagittal"]

for view in views:
    mip(
        nii_path=scan_file,
        output_path=f"mip_multiview/{view}/",
        window_size=15,
        view=view,
        debug=True
    )
# Creates: mip_multiview/axial/vessel_scan_mip_axial.nii.gz, etc.

Comparing Window Sizes

Test different window sizes to find optimal enhancement:

from nidataset.preprocessing import mip

scan_file = "test_scan.nii.gz"
window_sizes = [5, 10, 15, 20, 30]

for size in window_sizes:
    mip(
        nii_path=scan_file,
        output_path=f"window_test/size_{size}/",
        window_size=size,
        view="axial",
        debug=True
    )
    print(f"Window size {size}: effective window = {2*size+1} slices")

print("\nCompare outputs visually to select optimal window")

Quality Assessment

Generate MIP and evaluate enhancement:

import nibabel as nib
import numpy as np
from nidataset.preprocessing import mip

# Generate MIP
mip(
    nii_path="qa/original_scan.nii.gz",
    output_path="qa/mip_output/",
    window_size=15,
    view="axial",
    debug=True
)

# Load original and MIP
original = nib.load("qa/original_scan.nii.gz")
mip_vol = nib.load("qa/mip_output/original_scan_mip_axial.nii.gz")

orig_data = original.get_fdata()
mip_data = mip_vol.get_fdata()

# Analyze enhancement
print(f"\nEnhancement Analysis:")
print(f"  Original shape: {orig_data.shape}")
print(f"  MIP shape: {mip_data.shape}")
print(f"  Original intensity range: [{orig_data.min():.1f}, {orig_data.max():.1f}]")
print(f"  MIP intensity range: [{mip_data.min():.1f}, {mip_data.max():.1f}]")

# Compare mean intensities in vessel region (example coordinates)
vessel_region_orig = orig_data[100:150, 100:150, 50:100]
vessel_region_mip = mip_data[100:150, 100:150, 50:100]

print(f"  Vessel region - Original mean: {vessel_region_orig.mean():.1f}")
print(f"  Vessel region - MIP mean: {vessel_region_mip.mean():.1f}")
print(f"  Enhancement factor: {vessel_region_mip.mean() / vessel_region_orig.mean():.2f}x")

Preprocessing for Vessel Segmentation

Use MIP as preprocessing step:

from nidataset.preprocessing import mip
from nidataset.volume import generate_brain_mask

scan_file = "angiography.nii.gz"

# Step 1: Generate MIP to enhance vessels
mip(
    nii_path=scan_file,
    output_path="pipeline/mip/",
    window_size=15,
    view="axial",
    debug=True
)

# Step 2: Generate brain mask on enhanced volume
generate_brain_mask(
    nii_path="pipeline/mip/angiography_mip_axial.nii.gz",
    output_path="pipeline/masks/",
    threshold=(100, 500),  # Higher threshold for enhanced vessels
    closing_radius=3,
    debug=True
)

# Step 3: Apply mask to MIP volume
import nibabel as nib
mip_vol = nib.load("pipeline/mip/angiography_mip_axial.nii.gz")
mask = nib.load("pipeline/masks/angiography_mip_axial_brain_mask.nii.gz")

mip_data = mip_vol.get_fdata()
mask_data = mask.get_fdata()

vessel_focused = mip_data * mask_data

# Save vessel-focused volume
vessel_img = nib.Nifti1Image(vessel_focused, mip_vol.affine)
nib.save(vessel_img, "pipeline/vessel_segmentation_ready.nii.gz")

print("Preprocessing complete - ready for vessel segmentation")

Optimal Window Size Determination

Analyze enhancement vs detail trade-off:

import nibabel as nib
import numpy as np
from nidataset.preprocessing import mip
from scipy import ndimage

scan_file = "analysis/test_scan.nii.gz"
window_sizes = [5, 10, 15, 20, 25, 30]

results = []

for size in window_sizes:
    # Generate MIP
    mip(
        nii_path=scan_file,
        output_path=f"analysis/window_{size}/",
        window_size=size,
        view="axial"
    )

    # Load and analyze
    original = nib.load(scan_file)
    mip_vol = nib.load(f"analysis/window_{size}/test_scan_mip_axial.nii.gz")

    orig_data = original.get_fdata()
    mip_data = mip_vol.get_fdata()

    # Calculate metrics
    enhancement = mip_data.mean() / orig_data.mean()

    # Estimate detail preservation (via edge detection)
    edges_orig = ndimage.sobel(orig_data)
    edges_mip = ndimage.sobel(mip_data)
    edge_ratio = np.sum(edges_mip > 0) / np.sum(edges_orig > 0)

    results.append({
        'window_size': size,
        'effective_slices': 2*size+1,
        'enhancement': enhancement,
        'edge_preservation': edge_ratio
    })

# Display results
import pandas as pd
df = pd.DataFrame(results)
print("\nWindow Size Analysis:")
print(df.to_string(index=False))
print("\nOptimal: Balance between enhancement and edge preservation")

Creating Visualization Comparison

Generate side-by-side comparison:

import nibabel as nib
import numpy as np
from nidataset.preprocessing import mip

# Generate MIP
mip(
    nii_path="visualization/scan.nii.gz",
    output_path="visualization/mip/",
    window_size=15,
    view="axial",
    debug=True
)

# Load both volumes
original = nib.load("visualization/scan.nii.gz")
mip_vol = nib.load("visualization/mip/scan_mip_axial.nii.gz")

orig_data = original.get_fdata()
mip_data = mip_vol.get_fdata()

# Create side-by-side comparison (middle slice)
mid_slice = orig_data.shape[2] // 2

orig_slice = orig_data[:, :, mid_slice]
mip_slice = mip_data[:, :, mid_slice]

# Normalize for display
orig_norm = (orig_slice - orig_slice.min()) / (orig_slice.max() - orig_slice.min())
mip_norm = (mip_slice - mip_slice.min()) / (mip_slice.max() - mip_slice.min())

# Concatenate horizontally
comparison = np.hstack([orig_norm, mip_norm])

# Save as 2D image for visualization
from PIL import Image
comparison_img = Image.fromarray((comparison * 255).astype(np.uint8))
comparison_img.save("visualization/comparison.png")

print("Comparison image created: visualization/comparison.png")

Integration with Deep Learning Pipeline

Prepare MIP-enhanced data for training:

from nidataset.preprocessing import mip
from nidataset.slices import extract_slices

scan_files = ["train_001.nii.gz", "train_002.nii.gz", "train_003.nii.gz"]

for scan_file in scan_files:
    # Step 1: Generate MIP
    mip(
        nii_path=f"training/raw/{scan_file}",
        output_path="training/mip_volumes/",
        window_size=15,
        view="axial",
        debug=True
    )

    # Step 2: Extract 2D slices from MIP
    mip_filename = scan_file.replace('.nii.gz', '_mip_axial.nii.gz')
    extract_slices(
        nii_path=f"training/mip_volumes/{mip_filename}",
        output_path="training/mip_slices/",
        view="axial",
        target_size=(512, 512),
        debug=True
    )

print("MIP-enhanced training data prepared")

Batch Processing with Error Handling

Process multiple files robustly:

from nidataset.preprocessing import mip
import os

scan_folder = "raw_scans/"
output_folder = "mip_processed/"
failed_files = []

for filename in os.listdir(scan_folder):
    if filename.endswith('.nii.gz'):
        try:
            mip(
                nii_path=os.path.join(scan_folder, filename),
                output_path=output_folder,
                window_size=15,
                view="axial",
                debug=True
            )
            print(f"✓ Processed: {filename}")
        except Exception as e:
            print(f"✗ Failed: {filename} - {str(e)}")
            failed_files.append(filename)

if failed_files:
    print(f"\n{len(failed_files)} files failed:")
    for f in failed_files:
        print(f"  - {f}")
else:
    print("\nAll files processed successfully")

Typical Workflow

from nidataset.preprocessing import mip
import nibabel as nib

# 1. Define input and output
scan_file = "angiography/vessel_scan.nii.gz"
output_folder = "enhanced/"

# 2. Generate MIP with appropriate window size
mip(
    nii_path=scan_file,
    output_path=output_folder,
    window_size=15,  # Adjust based on vessel size
    view="axial",
    debug=True
)

# 3. Verify output

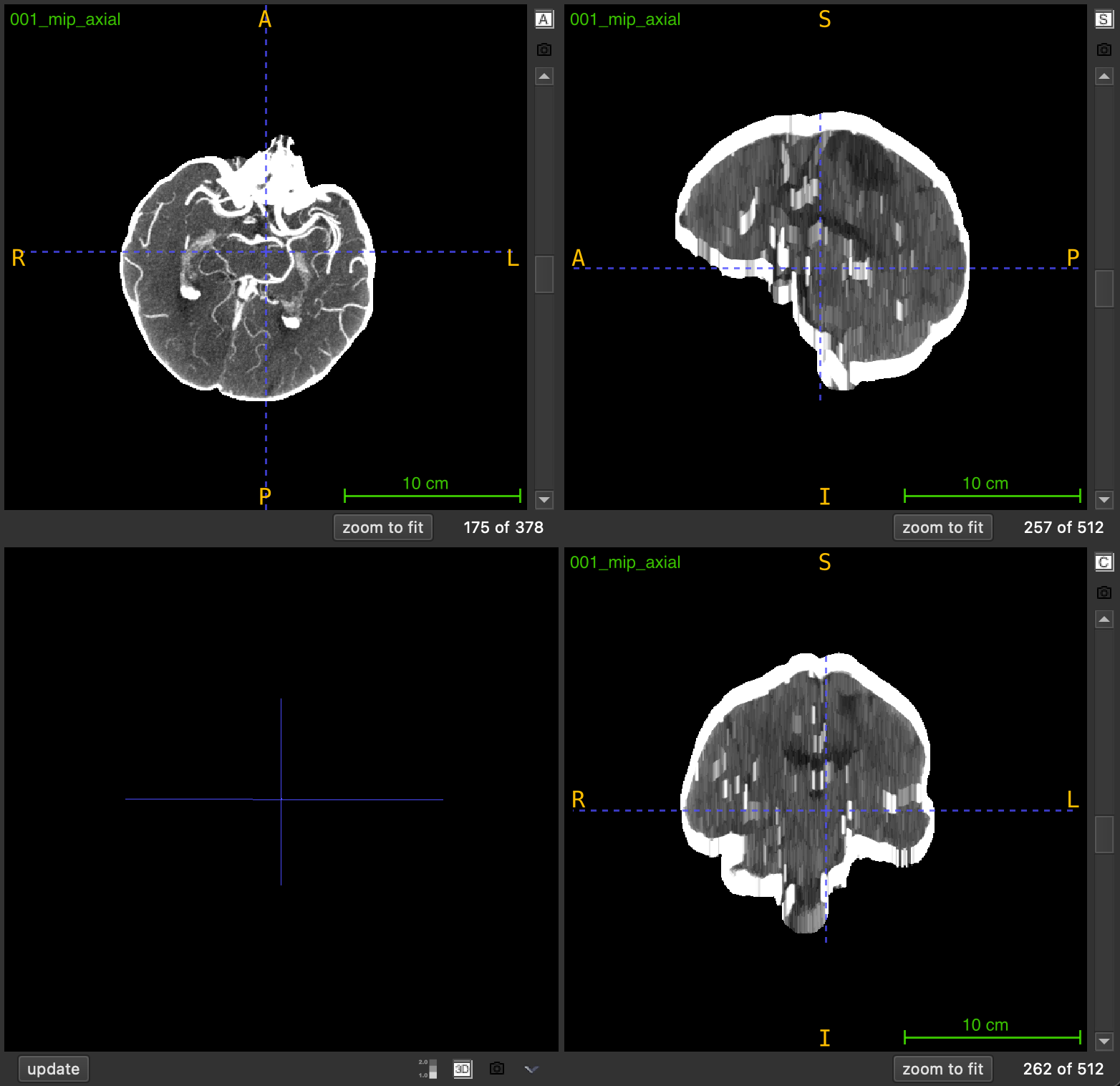

mip_vol = nib.load("enhanced/vessel_scan_mip_axial.nii.gz")
print(f"MIP volume shape: {mip_vol.shape}")

# 4. Use MIP volume for:
# - Vessel detection and segmentation
# - Aneurysm identification
# - Vascular analysis
# - Training data for deep learning models
