crop_and_pad

Crop a medical volume to its non-zero bounding box, then pad or crop it to a uniform target shape while preserving spatial orientation.

crop_and_pad(
    nii_path: str,
    output_path: str,
    target_shape: tuple = (128, 128, 128),
    debug: bool = False
) -> None

Overview

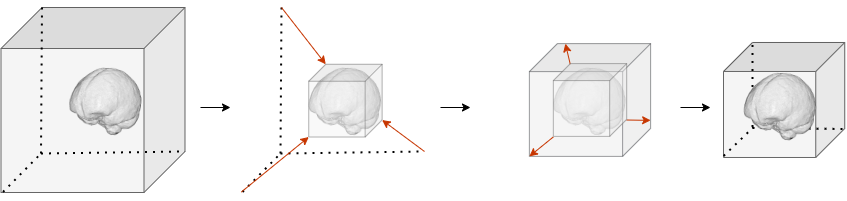

This function standardizes medical imaging volumes by removing empty space and ensuring consistent dimensions. The processing follows these steps:

1. Crop to bounding box: Identifies and removes empty voxels around the non-zero region
2. Resize to target: Applies symmetric padding if the volume is smaller than the target shape, or centered cropping if it’s larger
3. Preserve orientation: Maintains spatial alignment by updating the affine transformation matrix

The output is saved with the suffix _cropped_padded.nii.gz.

Parameters

Name	Type	Default	Description
nii_path	str	required	Path to the input volume in .nii.gz format.
output_path	str	required	Directory where the processed scan will be saved. Created automatically if it doesn’t exist.
target_shape	tuple	(128, 128, 128)	Desired output shape (X, Y, Z) after cropping and padding.
debug	bool	False	If True, prints detailed shape information and output file path to console.

Returns

None – The function saves the processed volume to disk.

Output File

The processed volume is saved as:

<PREFIX>_cropped_padded.nii.gz

where <PREFIX> is the original filename without the .nii.gz extension.

Example: Input case_01.nii.gz → Output case_01_cropped_padded.nii.gz

Exceptions

Exception	Condition
FileNotFoundError	The input file does not exist
ValueError	The file is not in .nii.gz format
ValueError	The input file is not 3D (wrong number of dimensions)
ValueError	The target shape is not 3D

Processing Details

Cropping Strategy

When the cropped volume exceeds the target shape in any dimension, centered cropping is applied to that dimension. This preserves the central portion of the scan.

Padding Strategy

When the cropped volume is smaller than the target shape in any dimension, symmetric padding with zero values is applied. If the required padding is odd, the extra voxel is placed on the right/bottom/back side.

Spatial Alignment

The affine transformation matrix and NIfTI header are automatically updated to maintain correct spatial orientation and world coordinates. This ensures that the processed volume aligns correctly with the original anatomical space.

Usage Notes

• Input Format: Only .nii.gz files are accepted
• 3D Volumes Required: Input must be a 3D NIfTI image
• Output Directory: Automatically created if it doesn’t exist
• Affine Preservation: The spatial transformation matrix is adjusted to maintain anatomical alignment
• Header Preservation: Original header metadata is retained where possible

Examples

Basic Usage

Process a single volume with default 128³ output:

from nidataset.volume import crop_and_pad

crop_and_pad(
    nii_path="dataset/scan_001.nii.gz",
    output_path="preprocessed/",
    target_shape=(128, 128, 128)
)
# Output: preprocessed/scan_001_cropped_padded.nii.gz

With Debug Information

Enable detailed output to verify processing:

crop_and_pad(
    nii_path="dataset/scan_001.nii.gz",
    output_path="preprocessed/",
    target_shape=(128, 128, 128),
    debug=True
)
# Prints:
# Input File: 'dataset/scan_001.nii.gz'
# Output Path: 'preprocessed/'
# Original Shape: (512, 512, 300) | Cropped Shape: (420, 380, 250) | Final Shape: (128, 128, 128)
# Processed volume saved at: preprocessed/scan_001_cropped_padded.nii.gz

Custom Target Shape

Use non-cubic dimensions for specialized applications:

crop_and_pad(
    nii_path="data/patient_042.nii.gz",
    output_path="output/standardized/",
    target_shape=(160, 160, 96)
)

Processing Multiple Files

Combine with a loop for batch processing:

import os
from nidataset.volume import crop_and_pad

input_folder = "raw_scans/"
output_folder = "processed_scans/"

for filename in os.listdir(input_folder):
    if filename.endswith(".nii.gz"):
        crop_and_pad(
            nii_path=os.path.join(input_folder, filename),
            output_path=output_folder,
            target_shape=(128, 128, 128),
            debug=True
        )

Verifying Output Shape

Check that processing produced the expected dimensions:

import nibabel as nib
from nidataset.volume import crop_and_pad

# Process the volume
crop_and_pad(
    nii_path="input/scan.nii.gz",
    output_path="output/",
    target_shape=(256, 256, 256)
)

# Verify output shape
img = nib.load("output/scan_cropped_padded.nii.gz")
print(f"Output shape: {img.shape}")  # Should be (256, 256, 256)

Typical Workflow

from nidataset.volume import crop_and_pad

# 1. Define input and output paths
input_scan = "raw_data/patient_scan.nii.gz"
output_dir = "preprocessed_data/"

# 2. Set target dimensions based on your model requirements
target_dims = (128, 128, 128)

# 3. Process the volume
crop_and_pad(
    nii_path=input_scan,
    output_path=output_dir,
    target_shape=target_dims,
    debug=True
)

# 4. Use the processed volume for analysis or training
processed_path = "preprocessed_data/patient_scan_cropped_padded.nii.gz"
