generate_brain_mask

Generate a binary brain tissue mask from a medical imaging volume using intensity thresholding, morphological operations, and connected component analysis.

generate_brain_mask(
    nii_path: str,
    output_path: str,
    threshold: tuple = None,
    closing_radius: int = 3,
    debug: bool = False
) -> None

Overview

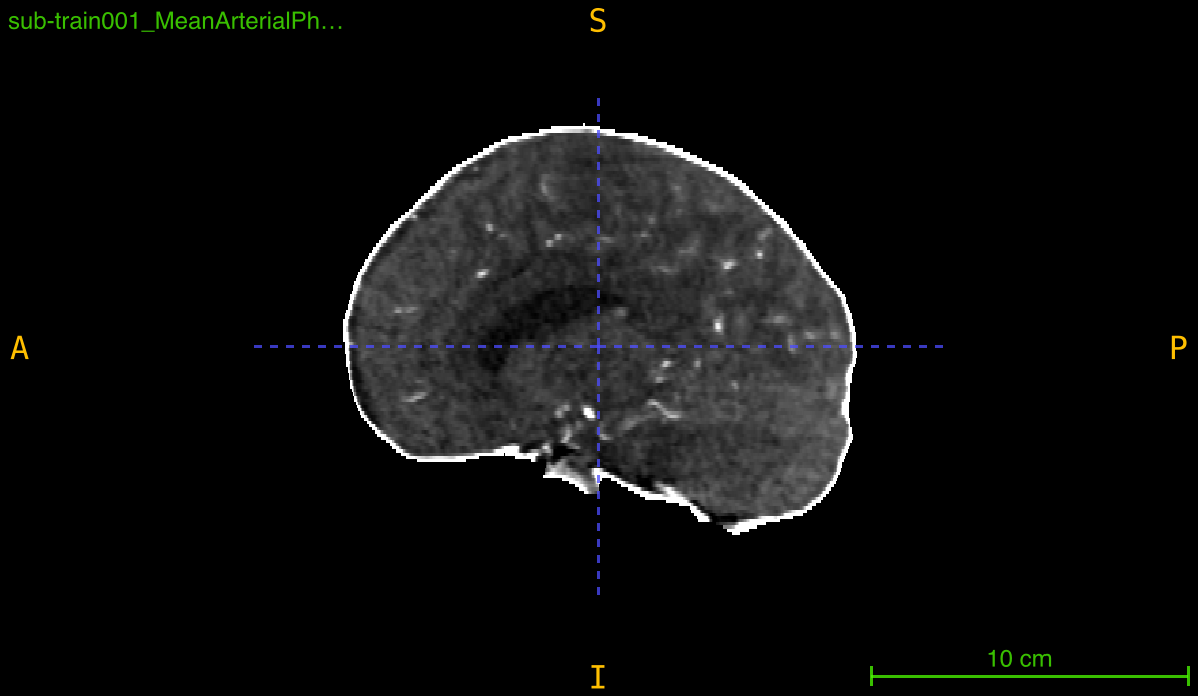

This function creates a binary mask that isolates brain tissue from background and skull by applying a multi-step segmentation pipeline:

1. Thresholding: Segments tissue based on intensity values (manual or automatic Otsu)
2. Hole filling: Fills small gaps within the segmented region
3. Morphological closing: Smooths boundaries and connects nearby regions
4. Component selection: Keeps only the largest connected component (assumed to be brain)

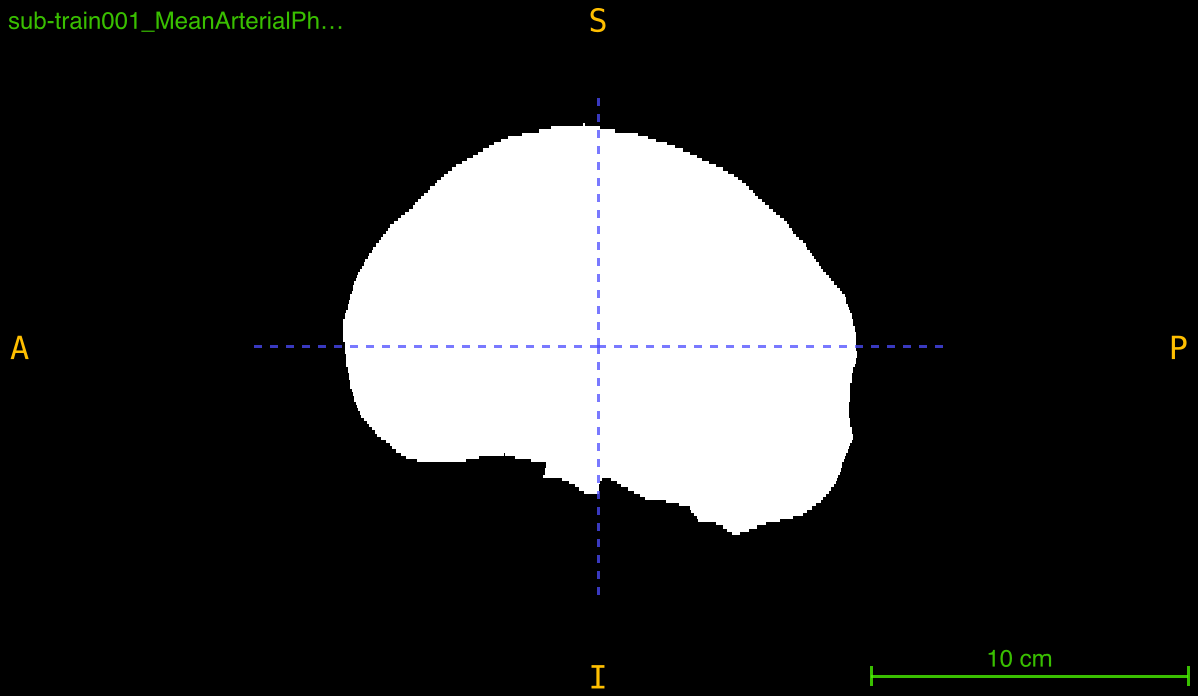

The result is a clean, connected binary mask suitable for skull stripping, region of interest extraction, or preprocessing pipelines.

Parameters

Name	Type	Default	Description
nii_path	str	required	Path to the input medical volume in .nii.gz format.
output_path	str	required	Directory where the brain mask will be saved. Created automatically if it doesn’t exist.
threshold	tuple or None	None	Intensity range (low, high) for segmentation. If None, uses automatic Otsu thresholding.
closing_radius	int	3	Radius in voxels for morphological closing to refine mask boundaries.
debug	bool	False	If True, prints diagnostic information including thresholds and file paths.

Returns

None – The function saves the binary mask to disk.

Output File

The mask is saved as:

<PREFIX>_mask.nii.gz

where <PREFIX> is the original filename without the .nii.gz extension.

Example: Input scan_001.nii.gz → Output scan_001_mask.nii.gz

Output Mask Properties

• Data type: uint8 (8-bit unsigned integer)
• Tissue voxels: Value 1
• Background: Value 0
• Dimensions: Same as input volume
• Spatial metadata: Inherits affine transformation from input

Thresholding Strategies

Automatic Thresholding (threshold=None)

Uses Otsu’s method with adaptive bounds:

otsu_value = threshold_otsu(non_zero_voxels)
lower_bound = otsu_value × 0.5  # Relaxed to capture soft tissue
upper_bound = otsu_value × 2.0  # Extended to include bright regions

Advantages:

• Adapts to different intensity distributions
• No manual parameter tuning
• Works across different scanners and protocols

When to use: Variable intensity ranges, mixed datasets, initial exploration

Manual Thresholding (threshold=(low, high))

Uses fixed intensity bounds for all scans:

binary_mask = (intensity >= low) & (intensity <= high)

Advantages:

• Consistent segmentation across dataset
• Precise control over tissue selection
• Reproducible results

When to use: Homogeneous datasets, known intensity ranges, production pipelines

Example intensity ranges:

• CT with contrast: (50, 300) for brain tissue
• CT plain: (20, 100) for soft tissue
• MRI T1: (50, 200) typical brain
• MRI T2: (100, 500) typical brain

Segmentation Pipeline Details

Step 1: Initial Thresholding

Creates a binary mask based on intensity values:

binary_mask = (data >= lower) & (data <= upper)

Step 2: Hole Filling

Fills internal gaps that might be caused by blood vessels or ventricles:

filled_mask = binary_fill_holes(binary_mask)

Step 3: Morphological Closing

Smooths boundaries and connects nearby regions using a spherical structuring element:

closed_mask = binary_closing(filled_mask, ball(closing_radius))

Closing radius effects:

• Radius 1-2: Minimal smoothing, preserves details
• Radius 3-4: Moderate smoothing, typical use
• Radius 5+: Aggressive smoothing, may lose small structures

Step 4: Largest Component Selection

Keeps only the largest connected component (assumed to be the brain):

labeled = label(closed_mask)
brain_mask = labeled == largest_component_label

This removes disconnected artifacts, noise, and small false positives.

Exceptions

Exception	Condition
FileNotFoundError	The input file does not exist
ValueError	File is not in .nii.gz format
ValueError	Input is not a 3D volume
ValueError	Threshold tuple does not contain exactly 2 values

Usage Notes

• Input Format: Only .nii.gz files are accepted
• 3D Volumes Required: Input must be a 3D NIfTI image
• Output Directory: Automatically created if it doesn’t exist
• Single Component: Only the largest connected component is retained
• Intensity Units: Ensure threshold values match your scan’s intensity scale

Examples

Basic Usage - Automatic Thresholding

Generate mask with automatic Otsu thresholding:

from nidataset.volume import generate_brain_mask

generate_brain_mask(
    nii_path="scans/patient_001.nii.gz",
    output_path="masks/",
    threshold=None,
    closing_radius=3
)
# Output: masks/patient_001_mask.nii.gz

With Debug Information

Enable verbose output to see threshold values:

generate_brain_mask(
    nii_path="ct_scans/brain_scan.nii.gz",
    output_path="brain_masks/",
    threshold=None,
    closing_radius=3,
    debug=True
)
# Prints:
# Using Otsu's threshold: 125.50
# Adjusted range: (62.75, 251.00)
# Input file: 'ct_scans/brain_scan.nii.gz'
# Output path: 'brain_masks/'
# Brain mask saved at: brain_masks/brain_scan_mask.nii.gz

Manual Thresholding

Use fixed intensity bounds for consistent segmentation:

generate_brain_mask(
    nii_path="data/scan.nii.gz",
    output_path="data/masks/",
    threshold=(50, 300),  # CT brain tissue range
    closing_radius=3,
    debug=True
)

Fine-Tuned Morphological Processing

Adjust closing radius for different characteristics:

# Conservative closing for detailed structures
generate_brain_mask(
    nii_path="high_res_scan.nii.gz",
    output_path="detailed_masks/",
    threshold=(40, 200),
    closing_radius=2,  # Minimal smoothing
    debug=True
)

# Aggressive closing for noisy data
generate_brain_mask(
    nii_path="noisy_scan.nii.gz",
    output_path="smooth_masks/",
    threshold=(50, 250),
    closing_radius=6,  # Strong smoothing
    debug=True
)

Finding Optimal Threshold

Test different thresholds to determine best settings:

import nibabel as nib
import numpy as np
from nidataset.volume import generate_brain_mask

test_thresholds = [
    (30, 200),
    (50, 250),
    (70, 300),
    None  # Automatic
]

scan_file = "test_scan.nii.gz"

for i, thresh in enumerate(test_thresholds):
    output_folder = f"threshold_test/test_{i}/"

    generate_brain_mask(
        nii_path=scan_file,
        output_path=output_folder,
        threshold=thresh,
        closing_radius=3,
        debug=True
    )

    # Analyze result
    mask = nib.load(f"{output_folder}/test_scan_mask.nii.gz")
    mask_data = mask.get_fdata()

    brain_voxels = np.sum(mask_data > 0)
    total_voxels = np.prod(mask_data.shape)
    coverage = (brain_voxels / total_voxels) * 100

    thresh_str = f"{thresh[0]}-{thresh[1]}" if thresh else "Otsu"
    print(f"Threshold {thresh_str}: Coverage = {coverage:.1f}%")

print("\nVisually inspect outputs to select best threshold")

Quality Control Verification

Generate mask and verify quality:

import nibabel as nib
import numpy as np
from nidataset.volume import generate_brain_mask

# Generate mask
generate_brain_mask(
    nii_path="qa/test_scan.nii.gz",
    output_path="qa/masks/",
    threshold=(50, 300),
    closing_radius=3,
    debug=True
)

# Load and verify
scan = nib.load("qa/test_scan.nii.gz")
mask = nib.load("qa/masks/test_scan_mask.nii.gz")

scan_data = scan.get_fdata()
mask_data = mask.get_fdata()

# Quality metrics
brain_voxels = np.sum(mask_data > 0)
total_voxels = np.prod(mask_data.shape)
coverage = (brain_voxels / total_voxels) * 100

# Check mask properties
unique_values = np.unique(mask_data)
num_components = len(np.unique(mask_data)) - 1  # Exclude background

print(f"\nQuality Control Report:")
print(f"  Scan shape: {scan_data.shape}")
print(f"  Mask shape: {mask_data.shape}")
print(f"  Brain coverage: {coverage:.1f}%")
print(f"  Mask values: {unique_values}")
print(f"  Number of components: {num_components}")

# Expected values
if coverage < 20 or coverage > 60:
    print("  Warning: Unusual coverage, review threshold")
if num_components > 1:
    print("  Warning: Multiple components detected")
else:
    print("  Mask looks good")

Applying Mask to Original Scan

Use mask for skull stripping:

import nibabel as nib
from nidataset.volume import generate_brain_mask

scan_file = "scans/patient_042.nii.gz"
mask_output = "masks/"
stripped_output = "skull_stripped/"

# Generate mask
generate_brain_mask(
    nii_path=scan_file,
    output_path=mask_output,
    threshold=(50, 300),
    closing_radius=4,
    debug=True
)

# Load scan and mask
scan = nib.load(scan_file)
scan_data = scan.get_fdata()

mask = nib.load(f"{mask_output}/patient_042_mask.nii.gz")
mask_data = mask.get_fdata()

# Apply mask (skull stripping)
stripped_data = scan_data * mask_data

# Save skull-stripped scan
os.makedirs(stripped_output, exist_ok=True)
stripped_img = nib.Nifti1Image(stripped_data, scan.affine)
nib.save(stripped_img, f"{stripped_output}/patient_042_stripped.nii.gz")

print("Skull stripping complete")

Comparing Different Closing Radii

Test morphological processing parameters:

import nibabel as nib
import numpy as np
from nidataset.volume import generate_brain_mask

radii = [2, 3, 4, 5, 6]
scan_file = "test_data/scan.nii.gz"

for radius in radii:
    output_folder = f"closing_test/radius_{radius}/"

    generate_brain_mask(
        nii_path=scan_file,
        output_path=output_folder,
        threshold=(50, 300),
        closing_radius=radius,
        debug=True
    )

    # Analyze smoothness (via surface area proxy)
    mask = nib.load(f"{output_folder}/scan_mask.nii.gz")
    mask_data = mask.get_fdata()

    # Count edge voxels
    from scipy import ndimage
    edges = ndimage.sobel(mask_data)
    edge_voxels = np.sum(edges > 0)

    print(f"Radius {radius}: Edge voxels = {edge_voxels}")

print("\nSmaller edge count = smoother mask")

Integration with Preprocessing Pipeline

Use masks in a complete preprocessing workflow:

import nibabel as nib
import numpy as np
from nidataset.volume import generate_brain_mask

def preprocess_scan(input_path, output_path):
    """Complete preprocessing with skull stripping and normalization."""

    # Step 1: Generate brain mask
    generate_brain_mask(
        nii_path=input_path,
        output_path="temp_masks/",
        threshold=(50, 300),
        closing_radius=3,
        debug=True
    )

    # Step 2: Load scan and mask
    scan = nib.load(input_path)
    scan_data = scan.get_fdata()

    filename = os.path.basename(input_path)
    mask_file = filename.replace('.nii.gz', '_mask.nii.gz')
    mask = nib.load(f"temp_masks/{mask_file}")
    mask_data = mask.get_fdata()

    # Step 3: Apply mask
    brain_only = scan_data * mask_data

    # Step 4: Normalize intensities within mask
    brain_voxels = brain_only[mask_data > 0]
    mean_intensity = brain_voxels.mean()
    std_intensity = brain_voxels.std()

    normalized = np.zeros_like(brain_only)
    normalized[mask_data > 0] = (brain_voxels - mean_intensity) / std_intensity

    # Step 5: Save preprocessed scan
    preprocessed = nib.Nifti1Image(normalized, scan.affine)
    nib.save(preprocessed, output_path)

    print(f"Preprocessed scan saved to {output_path}")
    return output_path

# Use in pipeline
preprocess_scan(
    "raw_scans/patient_001.nii.gz",
    "preprocessed/patient_001_preprocessed.nii.gz"
)

Batch Processing with Parameter Optimization

Process dataset with optimized parameters per scan type:

from nidataset.volume import generate_brain_mask
import json

# Load scan metadata
with open('scan_metadata.json', 'r') as f:
    metadata = json.load(f)

for scan_id, info in metadata.items():
    scan_file = f"scans/{scan_id}.nii.gz"

    # Select parameters based on scan type
    if info['modality'] == 'CT_contrast':
        thresh = (50, 300)
        radius = 3
    elif info['modality'] == 'CT_plain':
        thresh = (20, 100)
        radius = 4
    elif info['modality'] == 'MRI_T1':
        thresh = None  # Automatic
        radius = 3
    else:
        continue

    generate_brain_mask(
        nii_path=scan_file,
        output_path=f"masks/{info['modality']}/",
        threshold=thresh,
        closing_radius=radius,
        debug=True
    )

    print(f"Processed {scan_id} ({info['modality']})")

Creating Visualization Overlay

Generate mask overlay for quality inspection:

import nibabel as nib
import numpy as np
from nidataset.volume import generate_brain_mask

scan_file = "visualization/scan.nii.gz"

# Generate mask
generate_brain_mask(
    nii_path=scan_file,
    output_path="visualization/masks/",
    threshold=(50, 300),
    closing_radius=3
)

# Load scan and mask
scan = nib.load(scan_file)
scan_data = scan.get_fdata()

mask = nib.load("visualization/masks/scan_mask.nii.gz")
mask_data = mask.get_fdata()

# Create overlay with mask boundary highlighted
from scipy import ndimage
edges = ndimage.sobel(mask_data)

overlay = scan_data.copy()
overlay[edges > 0] = scan_data.max()  # Bright edge highlighting

# Save overlay
overlay_img = nib.Nifti1Image(overlay, scan.affine)
nib.save(overlay_img, "visualization/overlay_with_mask.nii.gz")
print("Overlay created for visual inspection in viewer")

Typical Workflow

from nidataset.volume import generate_brain_mask
import nibabel as nib
import numpy as np

# 1. Generate brain mask
scan_file = "data/patient_scan.nii.gz"
mask_output = "data/masks/"

generate_brain_mask(
    nii_path=scan_file,
    output_path=mask_output,
    threshold=(50, 300),  # Adjust for your modality
    closing_radius=3,
    debug=True
)

# 2. Verify mask quality
mask = nib.load("data/masks/patient_scan_mask.nii.gz")
mask_data = mask.get_fdata()

coverage = np.sum(mask_data > 0) / np.prod(mask_data.shape) * 100
print(f"Brain coverage: {coverage:.1f}%")

# 3. Use mask for:
# - Skull stripping
# - Region of interest extraction
# - Focused analysis on brain tissue
# - Preprocessing before segmentation or classification
